Chaparral 2012 SSi - Page 47

A
A
B
B
AC
A
ACA C

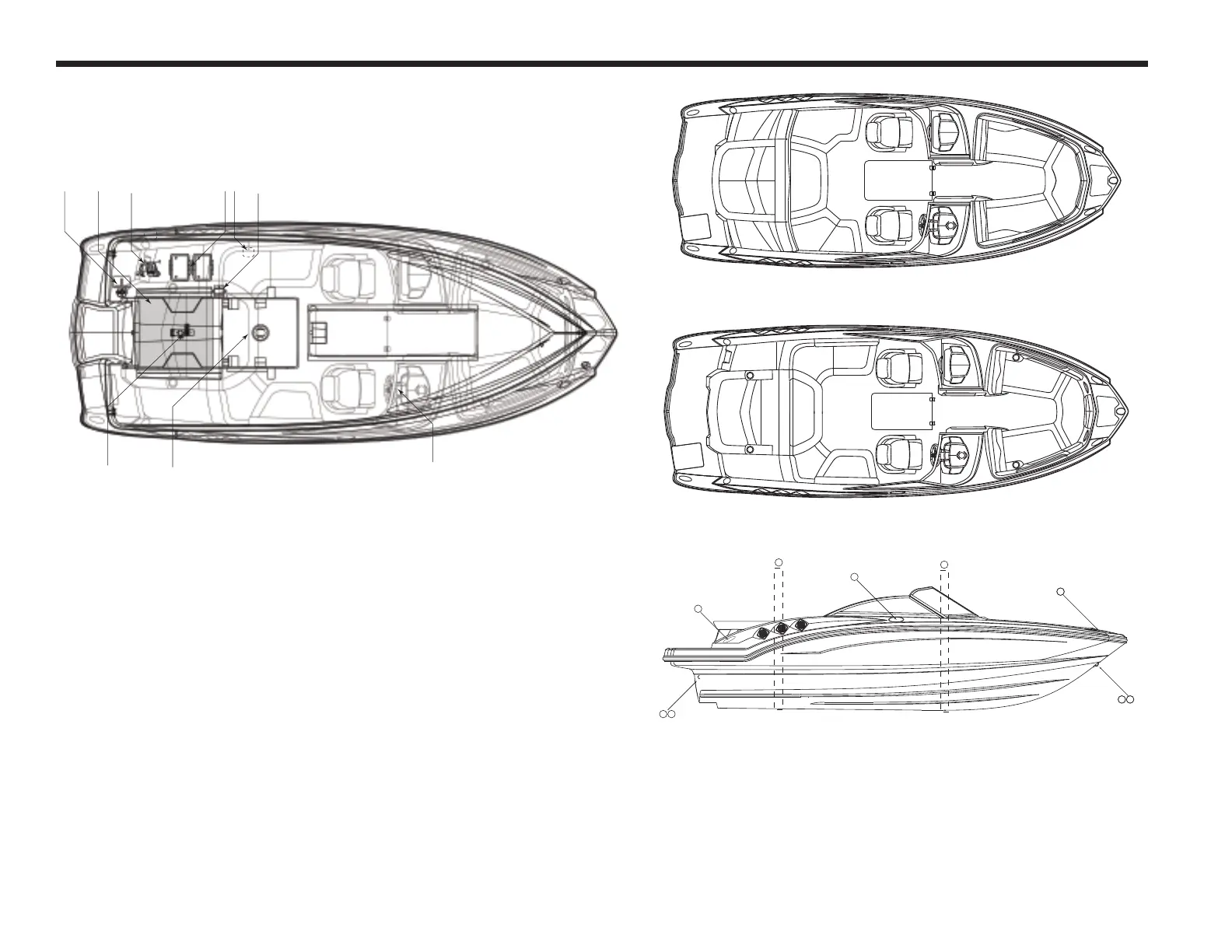

216 SSI WIDE TECH DECK PLAN
226 SSI WIDE TECH DECK PLAN
TYPICAL 216 SSI, 226 SSI WIDE TECH PROFILE
A - Strong points for anchoring or docking
B - Sling locations
C - Trailering eye
Figure 3.8 226 SSI, 216 SSI
1
2
3
4
5
7
8
9
6
TYPICAL SSI ENGINE COMPARTMENT LAYOUT
1. Fire Extinguishing System
2. Engine
3. Trim Pump
4. Battery Location - Shown with Optional 226 SSI Battery
5. Ce Option - Manual Pump
6. Blower
7. Bilge Pump
8. Fuel Tank
9. Steering System
