10E

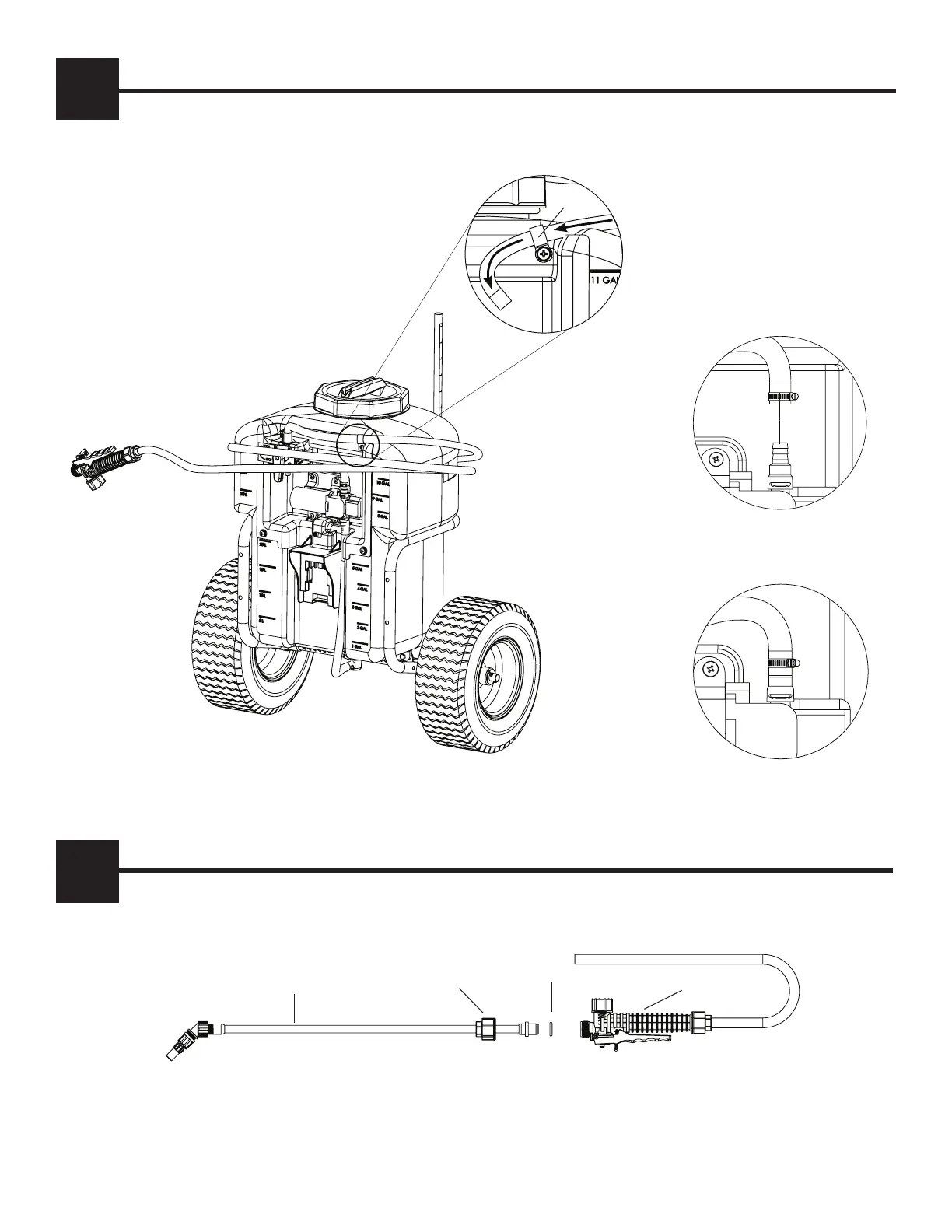

Connect discharge with hose (C-15) to diverting valve as shown. Thread hose through loop clamp (H-8)( Figure A). Assemble worm gear clamp
(H-5) to hose (Figure B). Assemble hose to diverting valve (Figure C). Tighten worm gear clamp and loop clamp.
ASSEMBLE DISCHARGE TO DIVERTING VALVE
8
C-15
H-8
H-5
H-8
Figure A
Figure B
Figure C
Make sure the O-ring is installed on the end of the extension wand (C-14). Insert the wand into discharge with hose (C-15). Turn and
tighten the retaining nut clock-wise onto the shut-off valve.
O-ring
Wand (C-14)
Retaining Nut
Discharge with Hose (C-15)
ASSEMBLE WAND TO SHUT-OFF
9
B
Image shown without frame legs
and handle bar for clarity
To Next Page
