Chapin 97902 - Nozzle Bracket and Hose Assembly

9E

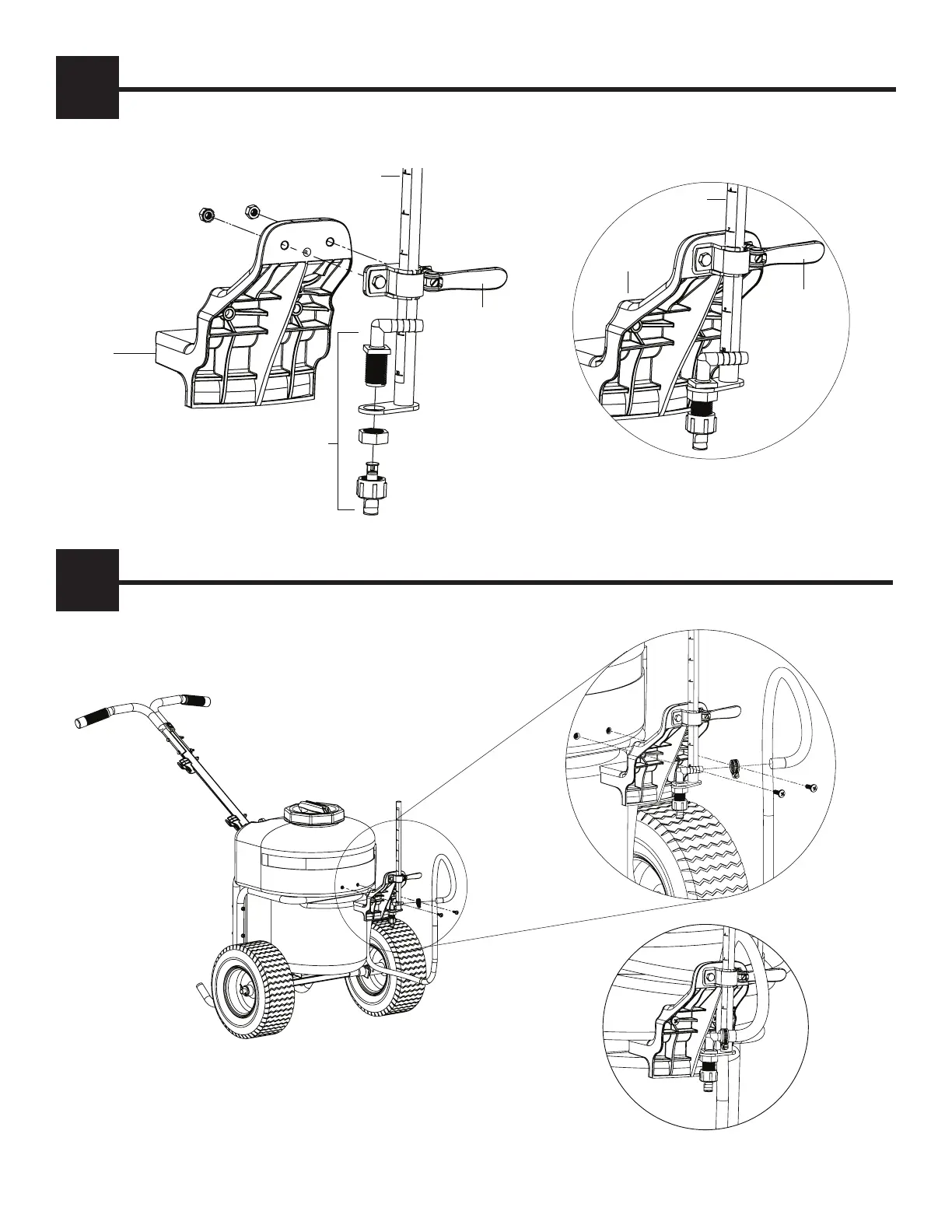

Using supplied machine screws (H-6) fasten adjustable nozzle bracket assembly to tank. Assemble hose from tank (C-2) to nozzle assembly
(H-2) with worm gear clamp (H-5).
ATTACH NOZZLE BRACKET AND ADJUSTABLE NOZZLE TO TANK
7
H-6
H-6
H-5
H-2
Assemble cam lock bracket (H-4) with supplied nuts and bolts from (H-4) to nozzle bracket (C-7). Then fasten nozzle assy (H-2) to
nozzle bar (C-6) as shown.
ASSEMBLE ADJUSTABLE NOZZLE BRACKET
6
Assembled
H-2
H-4
H-4
H-4
C-6
C-6
H-4
H-2
C-7
C-7
Assembled
