Chappee EDENA EVOLUTION EF 1.22 - Page 20

20

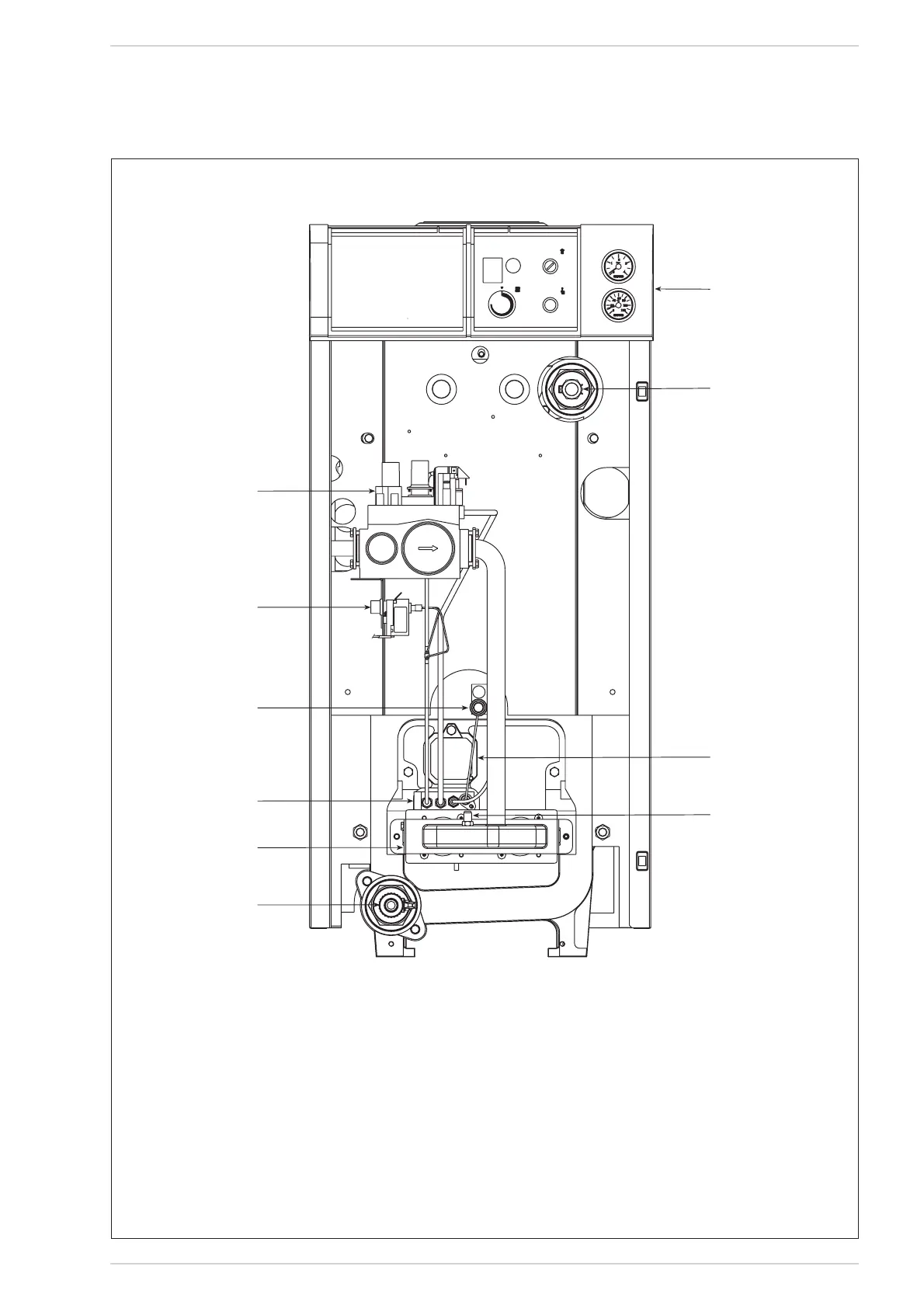

1.4 MAIN COMPONENTS (fig. 2)
Fig. 2
1
2
3
4
5
6
7
8
9
10
KEY
1 Drain cock (1/2”)
2 Burner colletor
3 Pilot burner
4 Piezoelectric activation
5 Safety stat
6 Gas valve
7 Control panel
8 Bulb holder sheath
9 Indicator door
10 Gas pressure connection
