ling materials capable of withstanding
mechanical stresses and flue heat
over time.
At any point of the flue the burnt gas
temperature shall not exceed the dew
point temperature. Maximum three
changes of direction can be made,
including the union to the stack/flue.
For changes of direction, use only cur-
ved components.
2.4 CONNECTION TO THE
ELECTRIC CIRCUIT
The EDENA EVOLUTION EF self-powe-
red boilers do not require connection
to an electrical system.
When the boiler is on, voltage values
are 5/7 mVcc to the thermocouple
and 250/300 mVcc to the thermopi-
le.
22
BP
TA

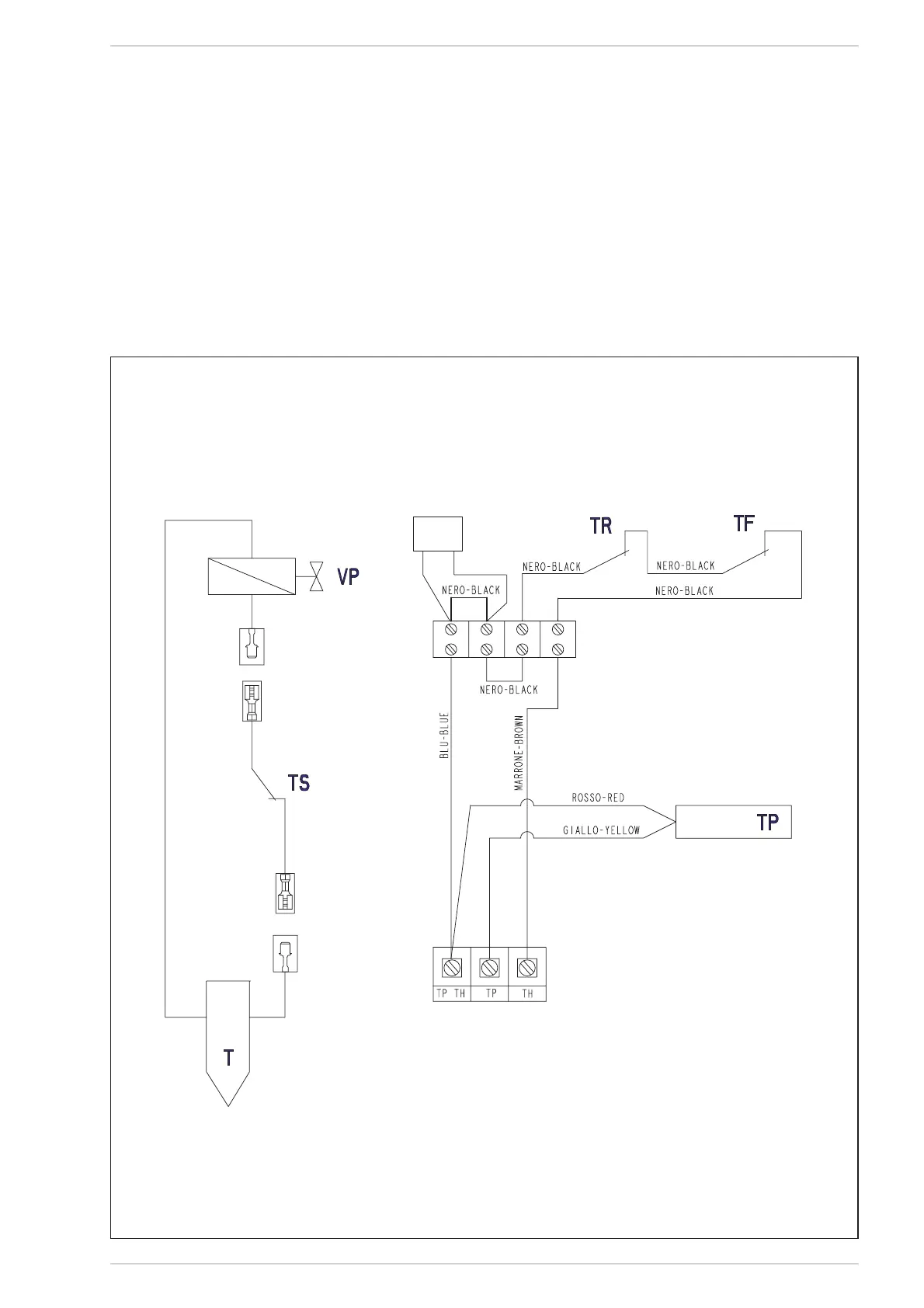

2.4.1 Wiring diagram (fig. 5)
Fig. 5
KEY
TR Boiler stat
TF Smoke stat
TS Safety stat
TP Thermopile
T Thermocouple
VP Pilot coil
BP Gas valve main coil
TA Room stat
NOTE: Cables 1 x 2.5 mm
