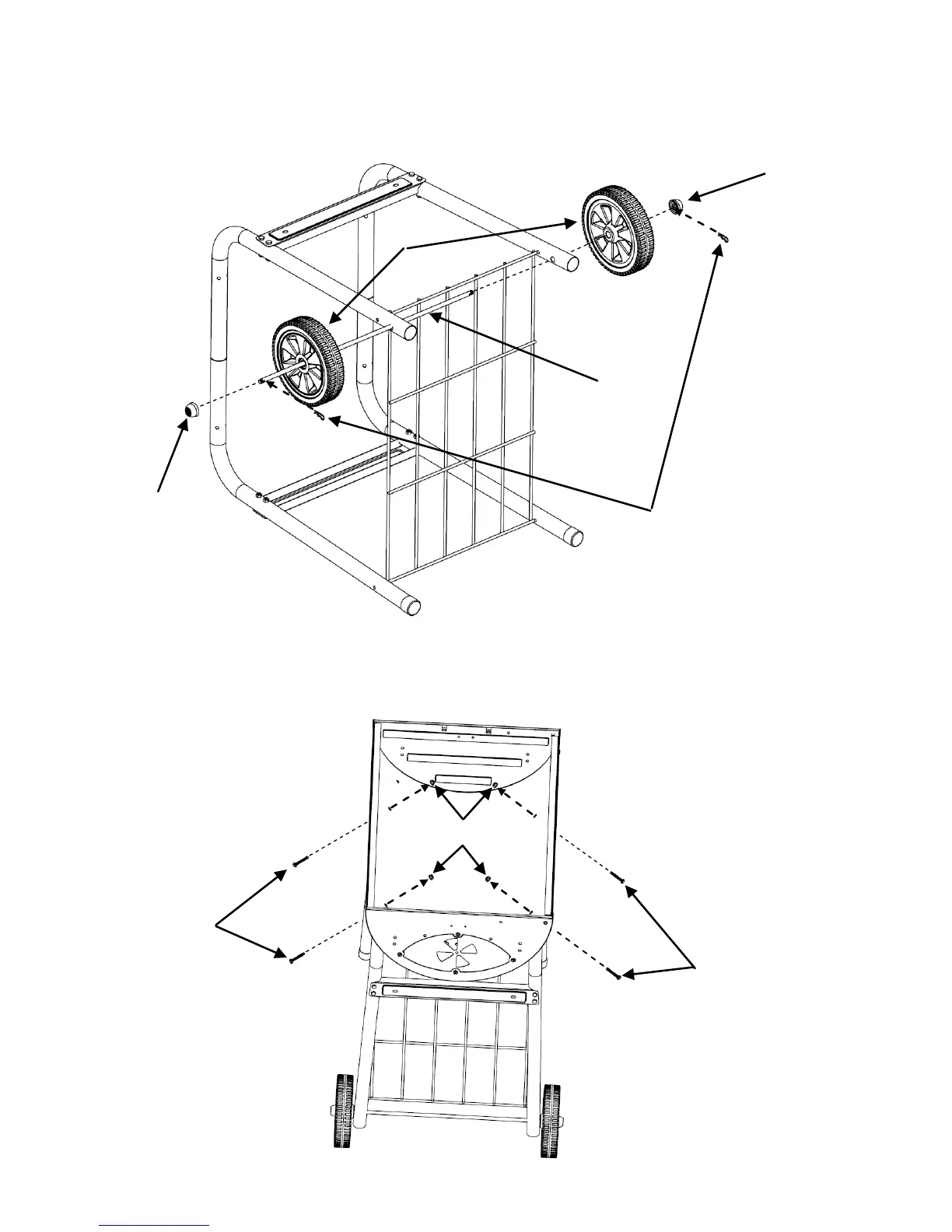

Step 3: Lay the cart assembly down with the Long Legs on the floor then install the Wheels and
Wheel Axle. On one end of the Axle insert the Cotter Pin into the hole on the Axle and snap in
the Hub Cap. Slide one Wheel onto the Axle then slide the Axle through the holes on the Short
Legs and Bottom Shelf. Complete the assembly by sliding the other Wheel onto Axle then insert
the Cotter Pin and snap on the Hub Cap.
Step 4: Attach the Grill Body to the previous assembly cart using four 1 3/4” Hex Bolts and four
Hex Nuts. The Bolts must go through the leg, Grill Body then tighten with the Hex Nuts inside
the Grill body.
Wheel Axle
Wheels
Cotter Pin
Hub Cap
Hub Cap
Hex Nuts
Hex Bolts
Hex Bolts
To Next Page
