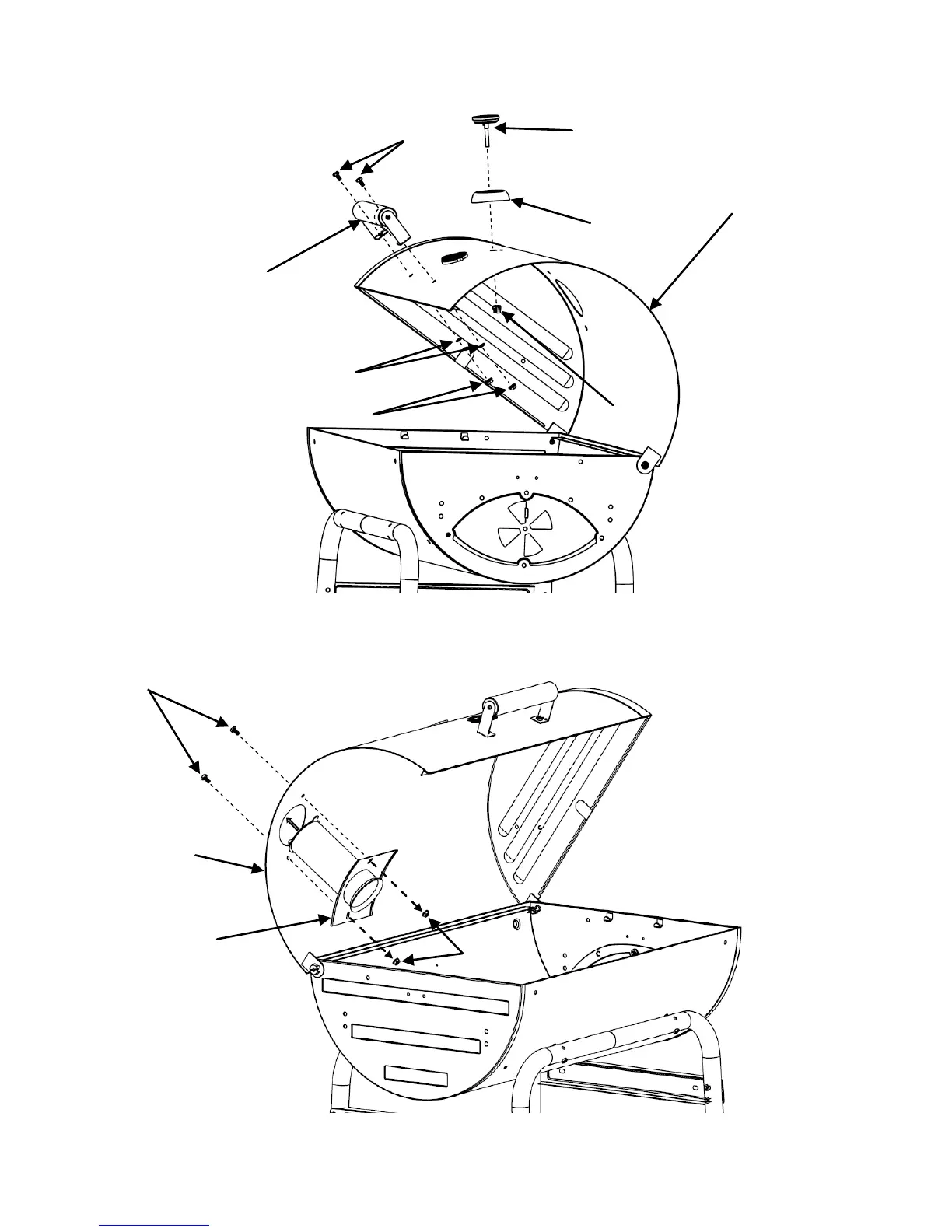

Step 7: Insert Thermometer through hole in Bezel and Grill Hood (from outside) and secure with
Wing Nut. Then attach Hood Handle to the Grill Hood with two 3/4" hex bolts, two lock washers,
and two hex nuts. See below.
Thermometer
Wing Nut
Hood Handle
Hex Bolts
Hex Nuts
Grill Hood
Step 8: Insert Smokestack Assembly through the hole on the Grill Hood from the inside of the
Grill Hood then secure it with two ¾” Hex Bolts and two Hex Nuts.
Lock Washers
Hex Bolts
Smokestack
Hex Nuts
Grill Hood
Bezel
To Next Page
