FIG.H
Acorn Nut
Spring
Smokestack Damper
Hex Bolt
Smokestack
(insert from inside)
Lock Washer
Hex Nut
Hex Nut
FIG. I
Hair Cotter Pin
Hood
Hinge
Bottom
Hinge Pin
FIG. K
Fire Grate
Adjustable Hanger
(may need to spread for better fit)
Catch Tabs
FIG. J
Damper Circle
Flat
Washer
Lock
Washer
Hex Nut
Hex Bolt
-4-
NOTE:
Damper and Bolt should
be on inside of grill.

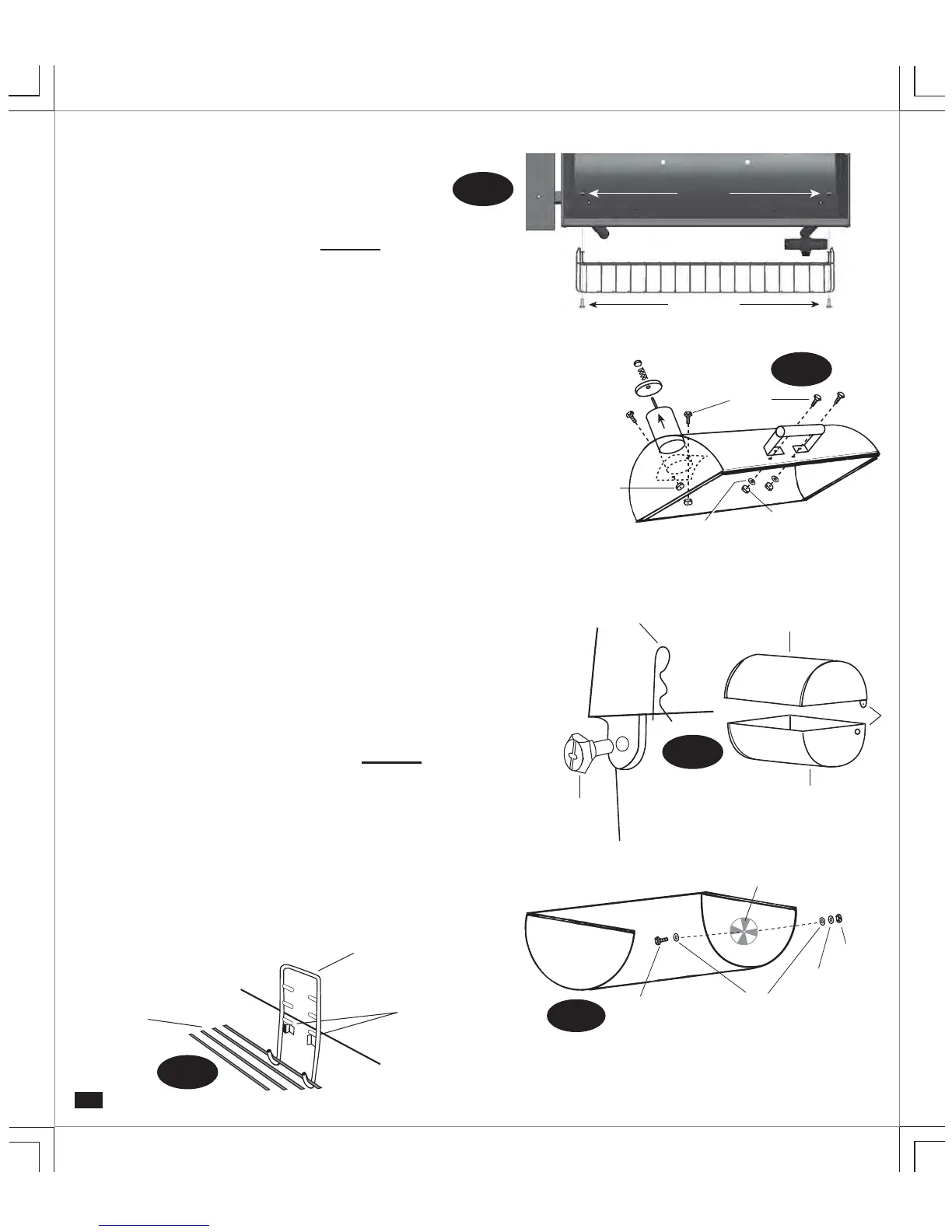

Attach CONDIMENT BASKET with two (2) 3/4”
Hex Bolts and Nuts as shown.
Fig. G.
Insert SMOKESTACK from INSIDE the HOOD up through
the hole. Attach with two (2) 3/4" hex bolts with the nuts on
the inside. Fig. H. Note: It is not necessary to remove the
Stack Damper.
Insert HEAT GAUGE through hole in hood (from outside)
and push the SPLIT RING over tabs on the sides of the
HEAT GAUGE from inside the hood.
Attach WOOD HOOD HANDLE to the center of the HOOD
with two (2) 3/4" hex bolts, lock washers, and hex nuts.
Fig. H.
Set the HOOD, in the CLOSED POSITION, on top of the
bottom Half of the grill body. Line up the Hinge holes and
insert the Hinge Pins. This may require lifting up on the back
of the Hood. Then, carefully open the hood, making sure to
not let the Hinge Pins fall out, and insert the Hair Cotter Pins
into the Hinge Pins. Fig. I.
Attach the DAMPER CIRCLE to INSIDE of bottom half of
grill body with a 3/4" Bolt. The bolt goes thru a Flat Washer,
thru the Damper Circle, thru the Grill Body, thru another Flat
Washer, thru a Lock Washer, and finally attached to a Hex
Nut. The small tab on the Damper Circle should protrude
outward. Fig. J.
12.
13.
11.
9.
8.
10
.
FIG. G
3/4” Hex Bolt
Hex Nut
