Chenbro Storage Chassis
16-Port 6Gbps Mini-SAS Expander Backplane User’s Manual
http://www.chenbro.com
8

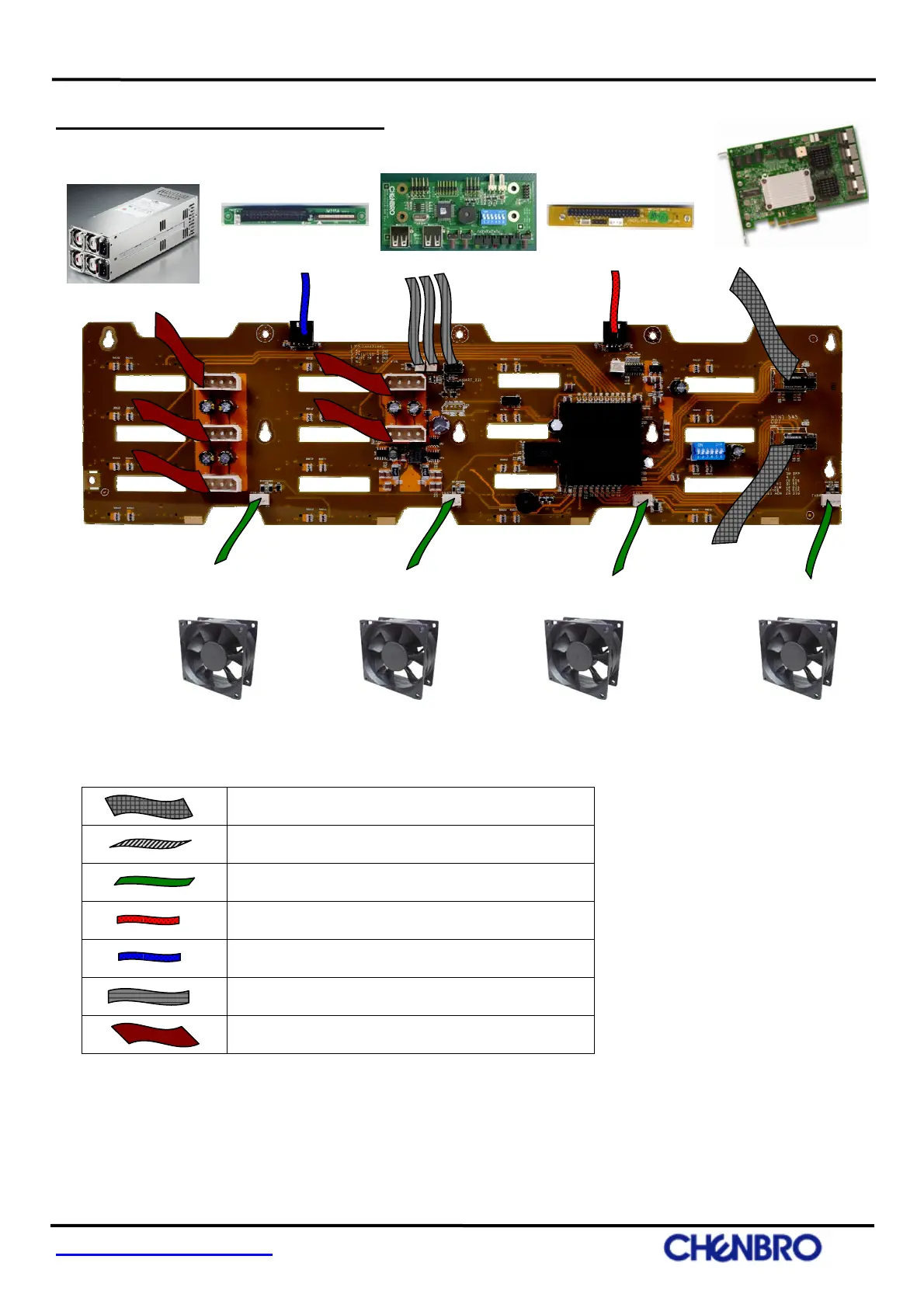

Expander Backplane Wiring
Mini-SAS Cable
Discrete HDD failure / activity signal cable
Fan cable
Slim ODD power cable
Slim FDD power cable
Power supply fail alarm/mute cable
Standard 4pin power cable
To slim FDD
adaptor board
To slim ODD
ada
tor board
To LED board
From Chassis Fan1 From Chassis Fan2
From Chassis Fan3 From Chassis Fan4
To PSU
To RAID/HBA or M/B
to another
Enclosure
