4.0 System Specifications
4.1 Description of Equipment
The Chentronics® Motivator3™ is a portable, battery powered High Energy Ignition System.

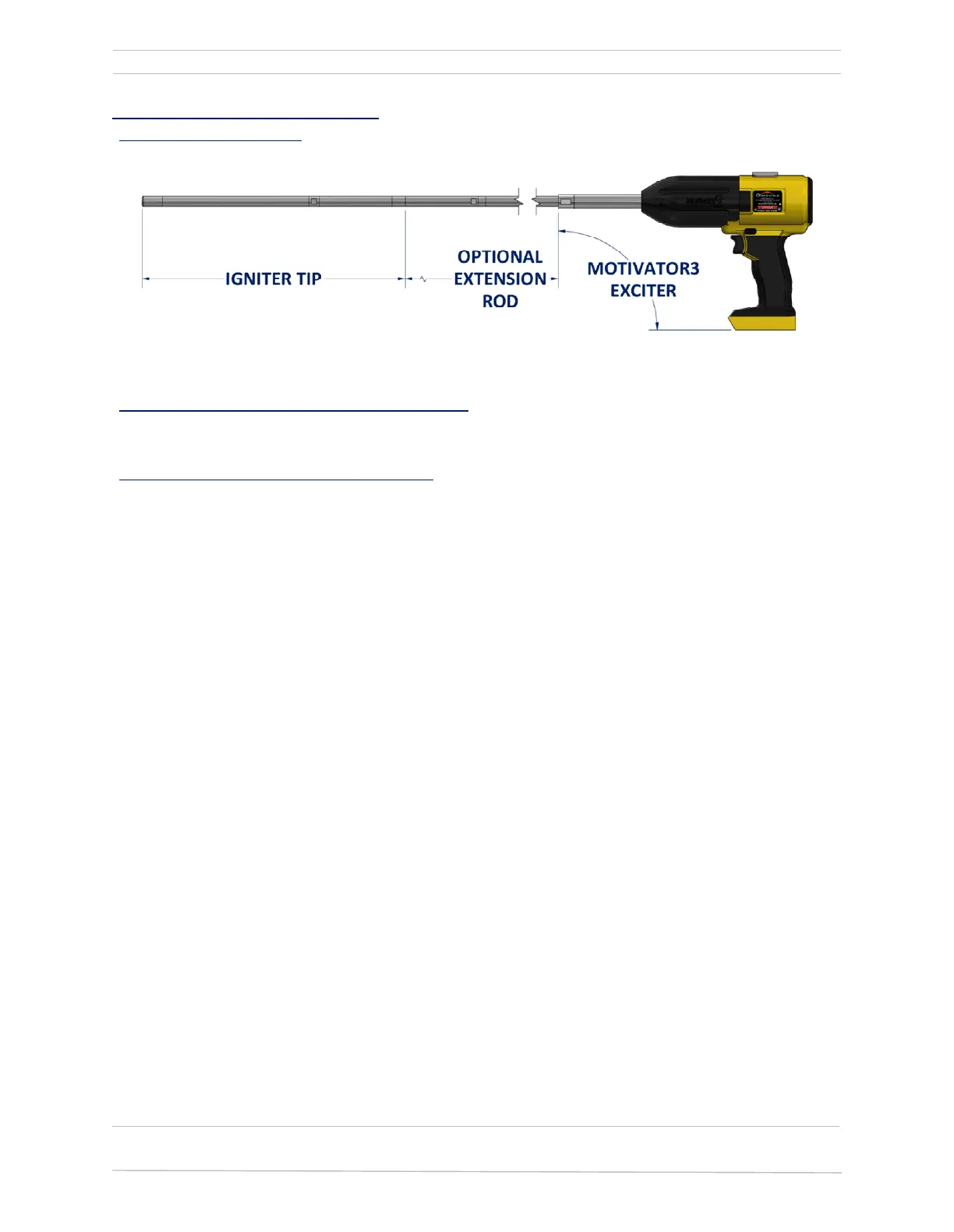

Figure 3: System General Arrangement
4.2 Electrical Area Classification and Safety Markings
The Motivator3™ system does not have any approved certifications for use in classified areas.
4.3 System Electrical and Physical Specifications
Application: Direct Spark Ignition of Gas Fuels
Input Power: 18-20VDC Battery Pack
Exciter Type: High Energy Ignition
Exciter Duty Cycle: 30 sec ON / 60 sec OFF
Exciter Spark Command: Trigger
Exciter Spark Visual: Blue LED
Exciter Power: 1.5J per Spark at 6 Sparks per Second Nominal
Operating Temperature Limits: -25°C to +40°C
Storage Temperature Limits: -25°C to +65°C (Battery has separate temperature limits)
Humidity: 0 to 100% condensing
Enclosure: No ingress protection
Electronics Assembly Weight: Approximately 2.4lb without accessories
Typically 5-10lbs depending on battery, extension rod,
and igniter.
Dimensions: Approximately 12 x 8 x 3 inches without accessories
