5.0 Instructions

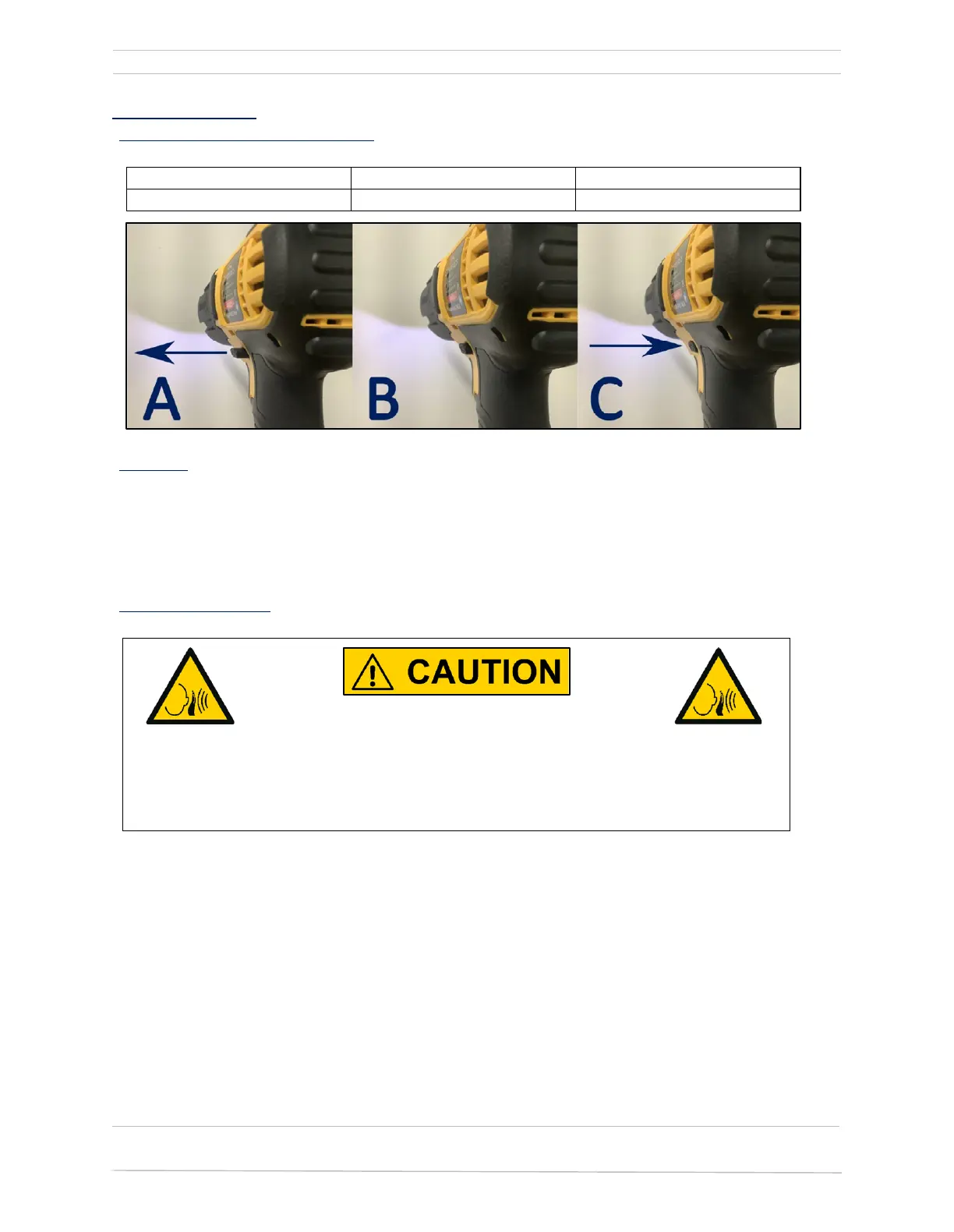

5.1 Three-Position Toggle Safety Switch
Unused Setting Locked Setting Operation Setting
Exciter does not operate
Trigger is locked to off
Trigger operates exciter
5.2 Assembly
Confirm safety lock is in the centered position, and trigger is unable to be depressed. If using an
extension rod, install into the Motivator3™ hand tight. Install Igniter Tip into Extension Rod or
Motivator3™ hand tight. Confirm battery is fully charged via indicator light on the charging
station or the indicator light on the battery itself. Install Battery.
5.3 System Function Test
STARTLING NOISE
Igniters can make a loud “snapping” or “popping” noise when fired. Anticipate this noise and
warn others to expect it before operating the equipment. Alert others in area before operating
equipment.
Shift safety lock to the right, and fully depress the trigger. Sparks will flash at the igniter tip, the
indicator light on top of the exciter will flash off with each spark, and a small light will illuminate
from beneath the nose of the exciter.
The Motivator3™ will continue sparking as long as the trigger is depressed. To stop sparking,
release the trigger. Note that the duty cycle of this equipment is 30 seconds on, 60 seconds off.
Operating at a rate higher than the duty cycle could damage the exciter and void the warranty.
Do not operate the Motivator3™ without an igniter tip. Without an igniter tip the exciter must
absorb the energy pulse, which can damage the exciter and void the warranty.
