6. Anti-theft alarm and locking system
100

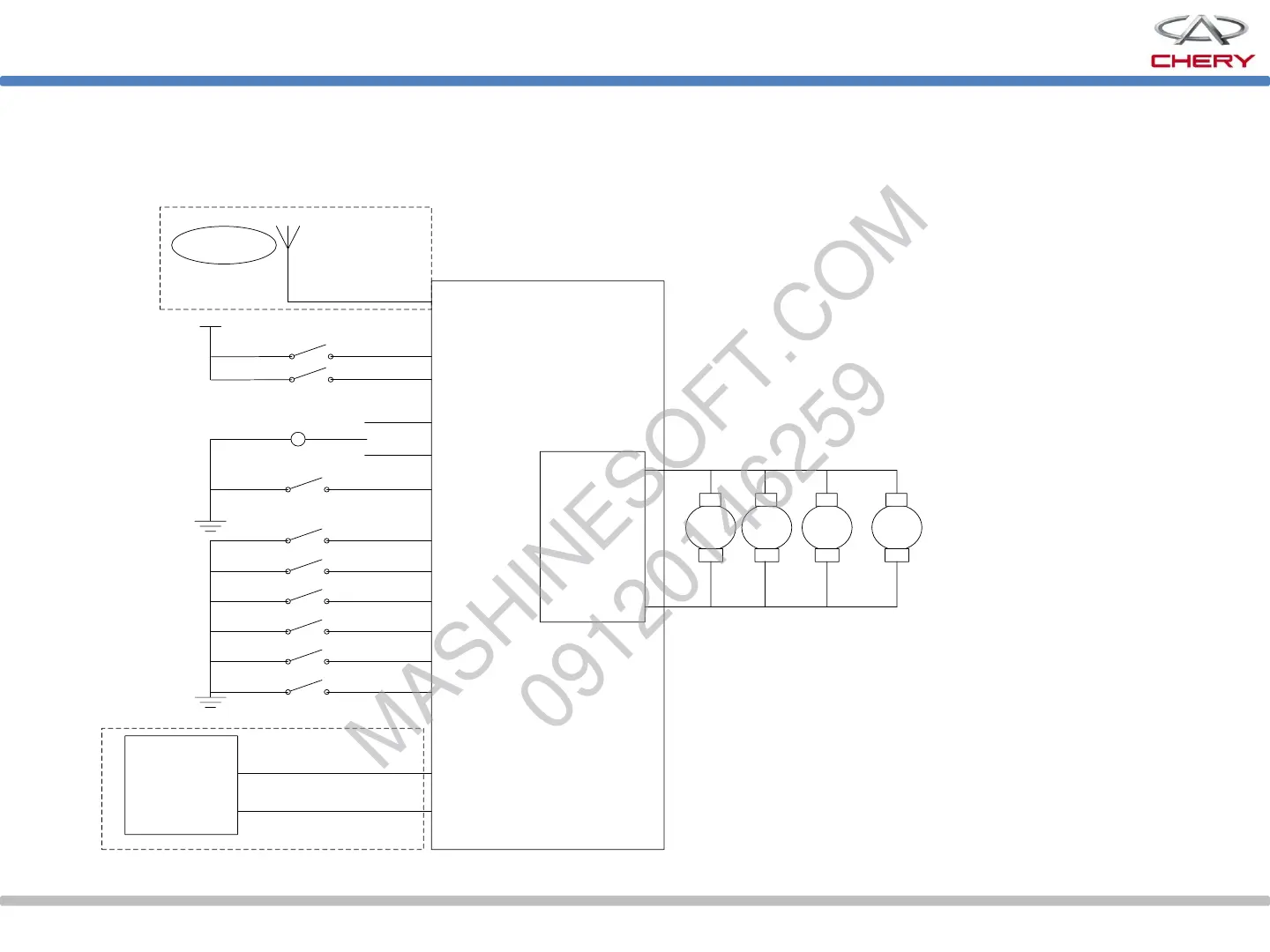

Control diagram of central control lock
RKE
MM M M
BCM
Double
Relay
PEPS
CAN L(POWER CAN)
CAN H(POWER CAN)
ACC
ON
Center lock
Center Unlock
Lock/Unlock In
FL Door Ajar
FR Door Ajar
RL Door Ajar
RR Door Ajar
Trunk Ajar
Hood Ajar
Door Motor UnlockCtrl
Door Motor LockCtrl
Operate curren:<=4*0.62A
Stall curren:<=4*4.3A
+30
PE2-09
PE2-25
PE1-07
PE1-24
PE1-06
PP3-20
PP3-19
PE1-03
PE1-20
PE1-21
PE1-04
PE1-05
PE1-22
PE2-15
PE2-14
