Chery Tiggo 5 T21 - Page 177

Training Center of After-Sales Department Chery International
12. Instrument cluster
177
2. Function description
Speedometer
– Source of signal: CAN network
– Left/right front wheel speed sensor
– Arithmetic:
Two wheel speed sensors/2=vehicle speed;

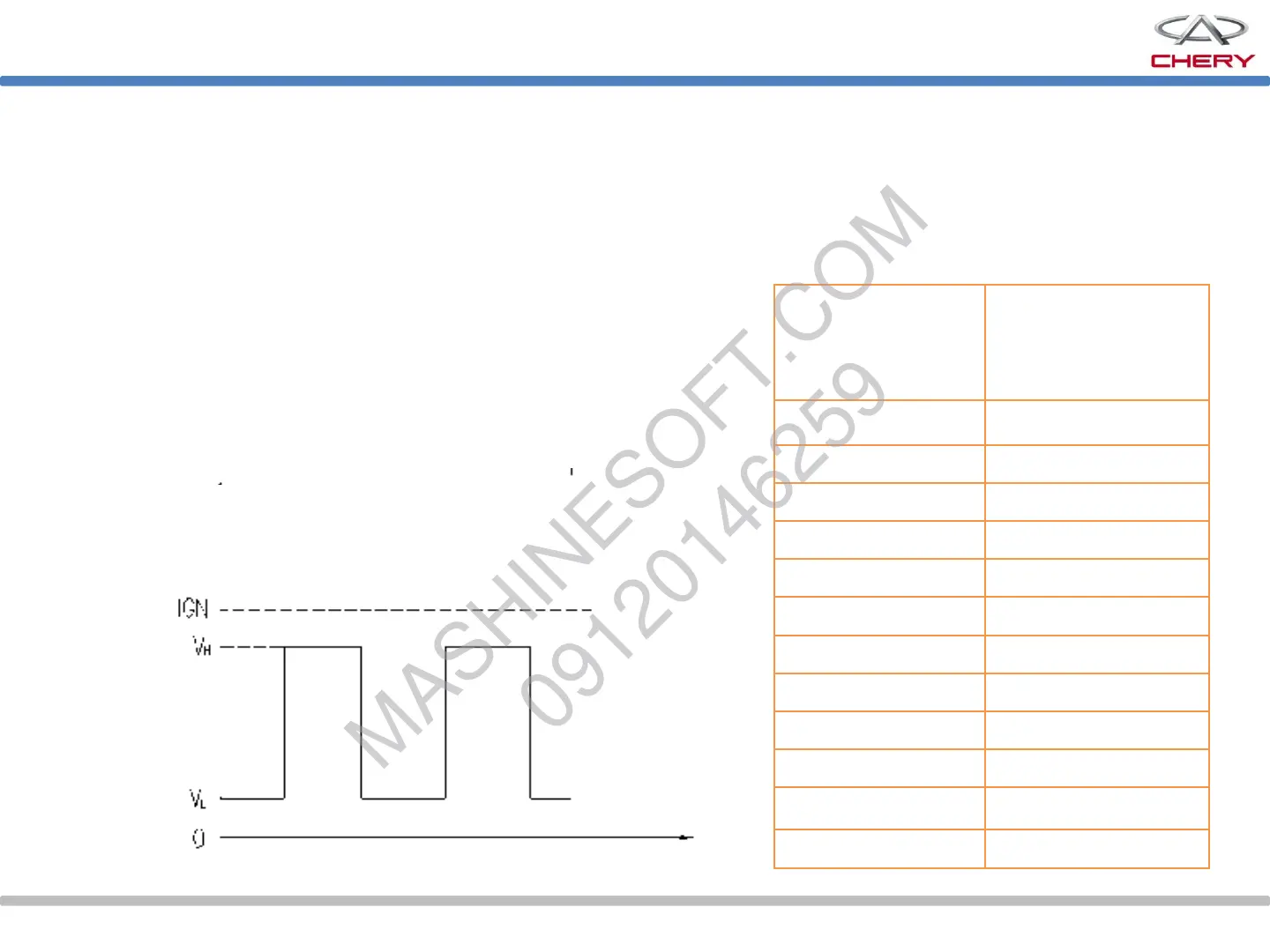

– Vehicle speed signal output
Signal characteristics are listed below:
Actual vehicle
speed (km/h)
Indicated vehicle
speed (km/h)
0
0
20
20.6~23.1
40
41.2~43.7
60
61.8~64.3
80
82.4~84.9
100
103~105.5
120
123.6~126.1
140
144.2~146.7
160
164.8~167.3
180
185.4~187.9
200
206~208.5
214
220
Voltage (V)
Time (S)
