12. Instrument cluster
181
2. Function description
Left/turn signal lamp
Parking lamp
High beam lamp
DRL (reserved)
Front/rear fog lamp

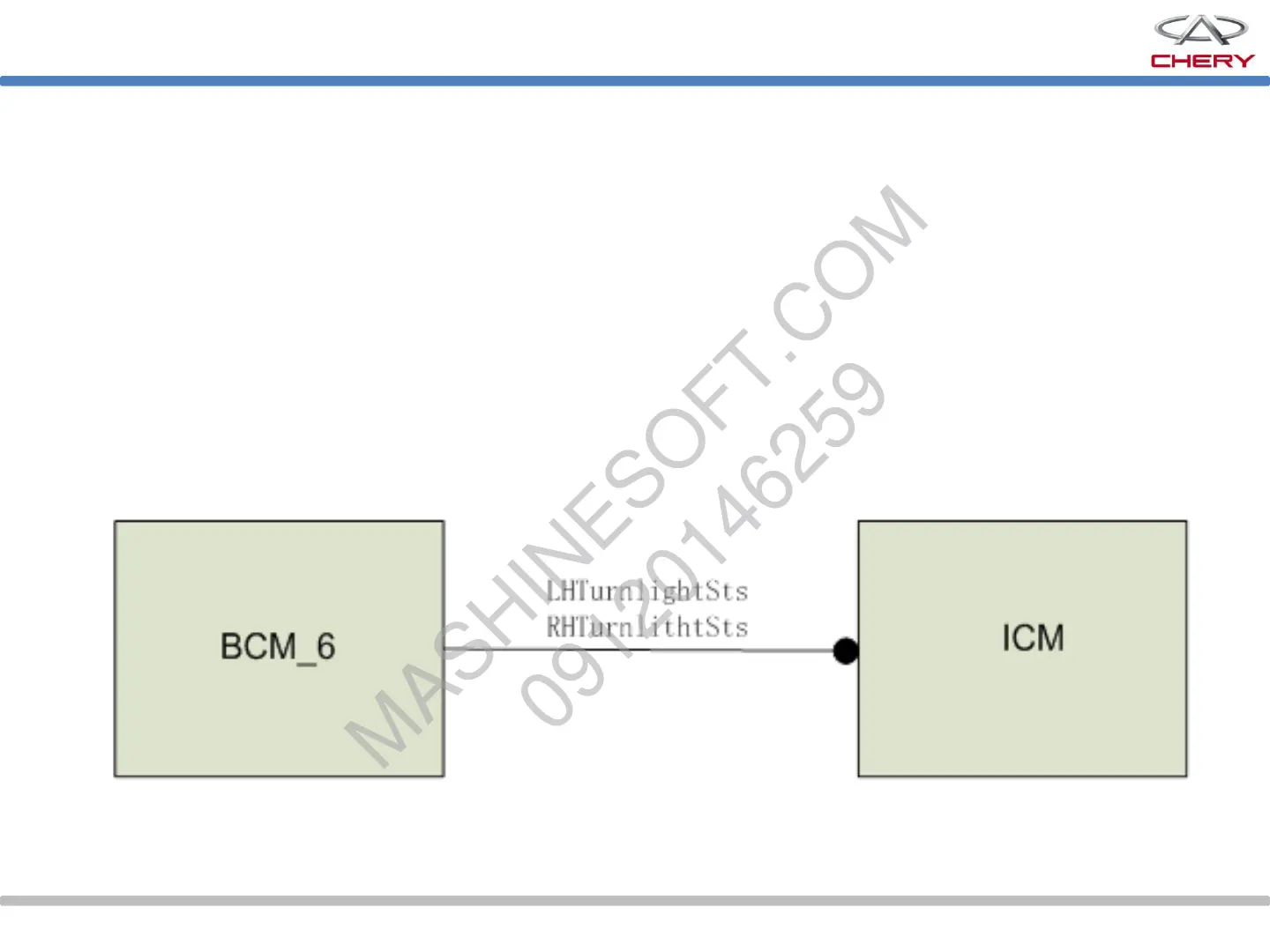

The indicator signal comes from BCM_6 of CAN, with the send cycle of 20ms. As for details, refer
to T21 CAN signal list.
