Chery Tiggo 5 T21 - Safety Airbag System Circuit Diagram

Training Center of After-Sales Department Chery International
16. Safety airbag system
246

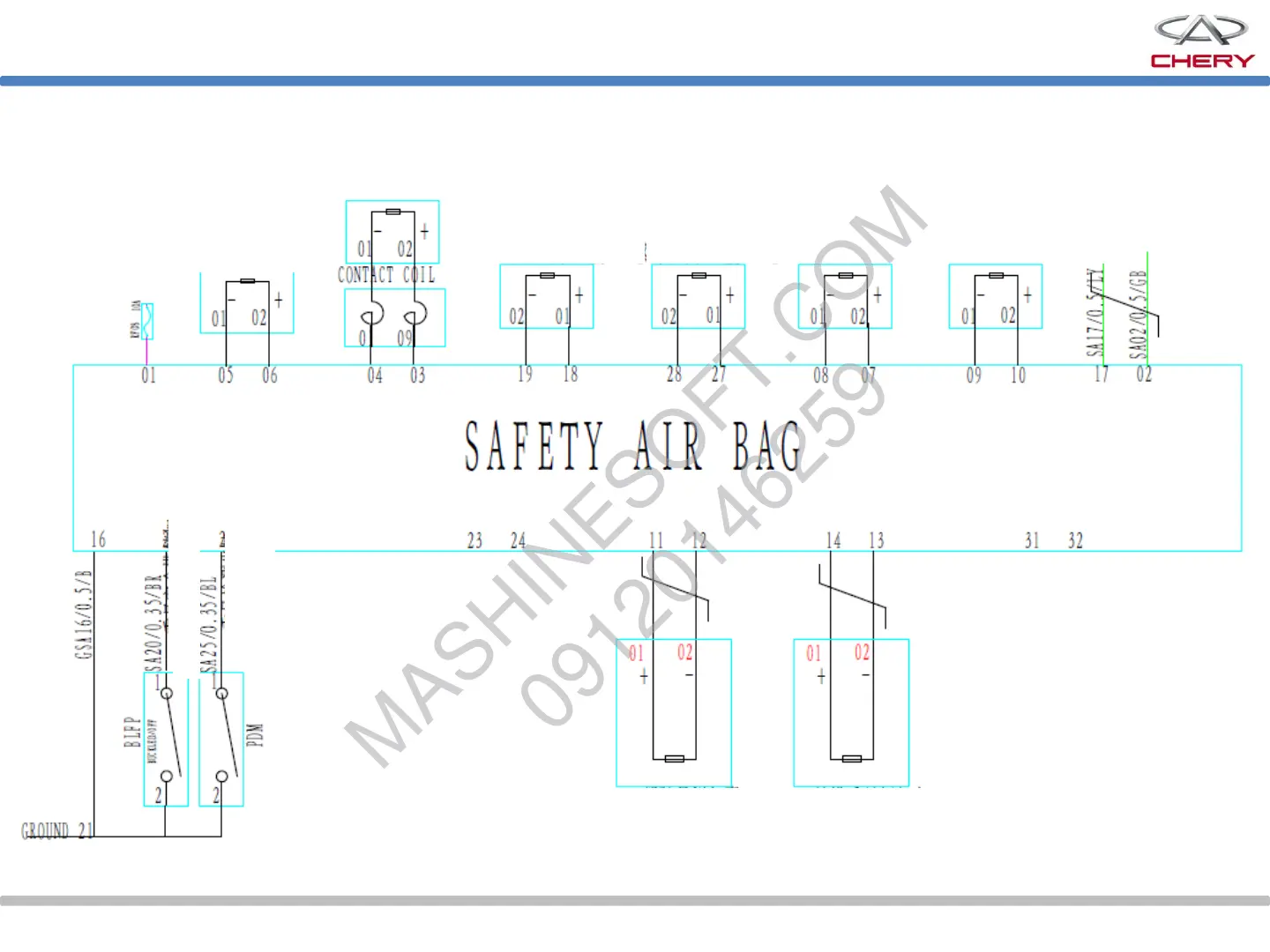

2. Circuit diagram analysis
Front passenger
side airbag
SABFP
Driver side airbag
SABFD
PAB
Front passenger
airbag
DAB
Driver airbag
PASFD
Driver side
acceleration sensor
PASFP
Passenger side
acceleration
sensor
PBT
Front passenger
safety belt
pretensioner
PBT
Driver safety belt
pretensioner
Passenger safety belt buckle
Passenger detection
cushion
