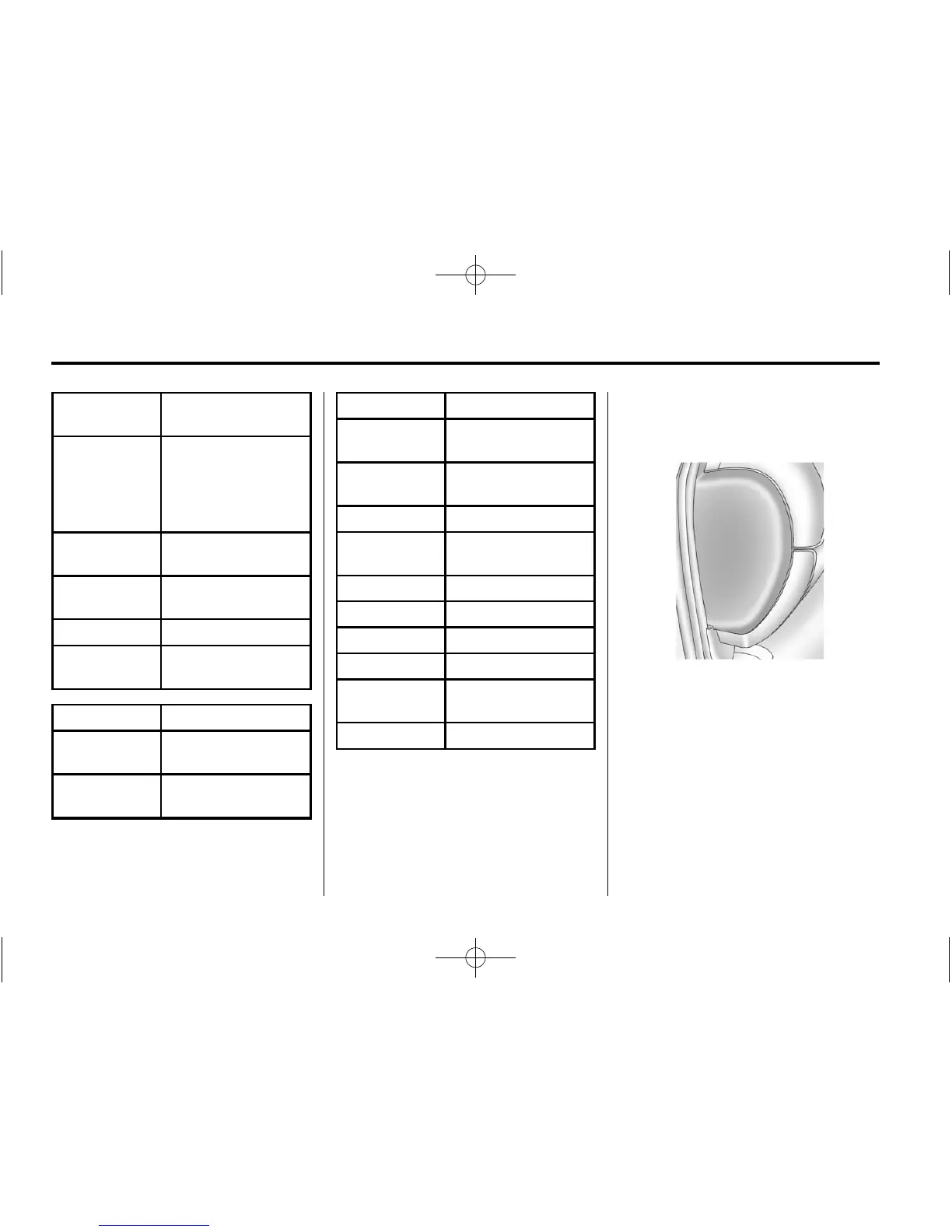

Black plate (52,1)

Chevrolet Silverado Owner Manual - 2011

10-52 Vehicle Care

J-Case

Fuses

Usage

Stud 1 (Trailer

Connector

Battery Power)

(Optional - 40A

Fuse Required)

Mid-Bussed

Electrical Center 1

Climate Control

Blower

71 Not Used

Left Bussed

Electrical Center 2

Relays Usage

FAN HI

Cooling Fan High

Speed

FAN LO

Cooling Fan Low

Speed

Relays Usage

FAN CNTRL

Cooling Fan

Control

HDLP

LO/HID

Low-Beam

Headlamp

FOG LAMP Front Fog Lamps

A/C

CMPRSR

Air Conditioning

Compressor

STRTR Starter

PWR/TRN Powertrain

FUEL PMP Fuel Pump

PRK LAMP Parking Lamps

REAR

DEFOG

Rear Defogger

RUN/CRNK Switched Power

Instrument Panel Fuse

Block

The instrument panel fuse block

access door is located on the driver

side edge of the instrument panel.

Pull off the cover to access the fuse

block.
