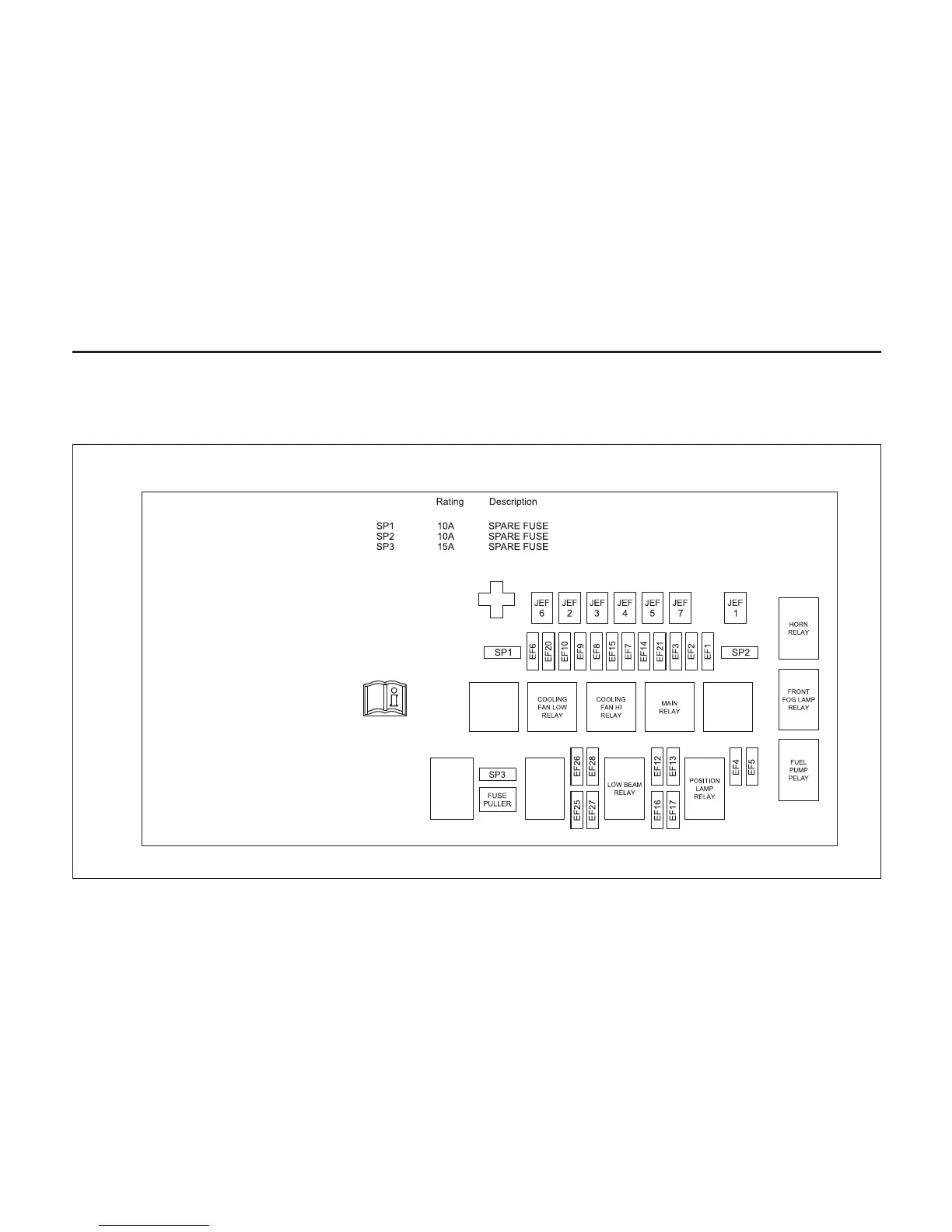

Engine Compartment Fuse Block
HEX0126
Fuse No
Fuse No Rating Description
Minifuse
EF1 15A FRT FOG
EF2 15A FUEL PUMP
EF3 10A HORN
EF4 10A TAIL LH
EF5 10A TAIL RH
EF6 10A A/C COMP
EF7 20A POSITION LAMP
EF8 30A REAR DEFOG
EF9 15A ABS
EF10 25A HEAD LP
EF12 15A FRT O2 SNSR
EF13 15A RR O2 SNSR
EF14 30A MAIN RELAY
EF15 10A ECU
EF16 15A INJECTOR
EF17 15A ECU2
EF20 15A TCM
EF21 30A ELE PUMP
EF25 10A H_LP LO LH
EF26 10A H_LP HI LH
EF27 10A H_LP LO RH
EF28 10A H LP HI RH
J-Case fuse
JEF1 30A PWR WINDOW
JEF2 40A BLOWER MTR
JEF3 40A COOLING FAN
JEF4 40A ABS
JEF5 30A ACC/ING1
JEF6 30A ING2/START
JEF7 30A BATT TO IP
FUEL
HEATER
RELAY
HI BEAM
RELAY
START
RELAY /
BACK UP
118 Vehicle Maintenance
COMPRESSOR
RELAY
