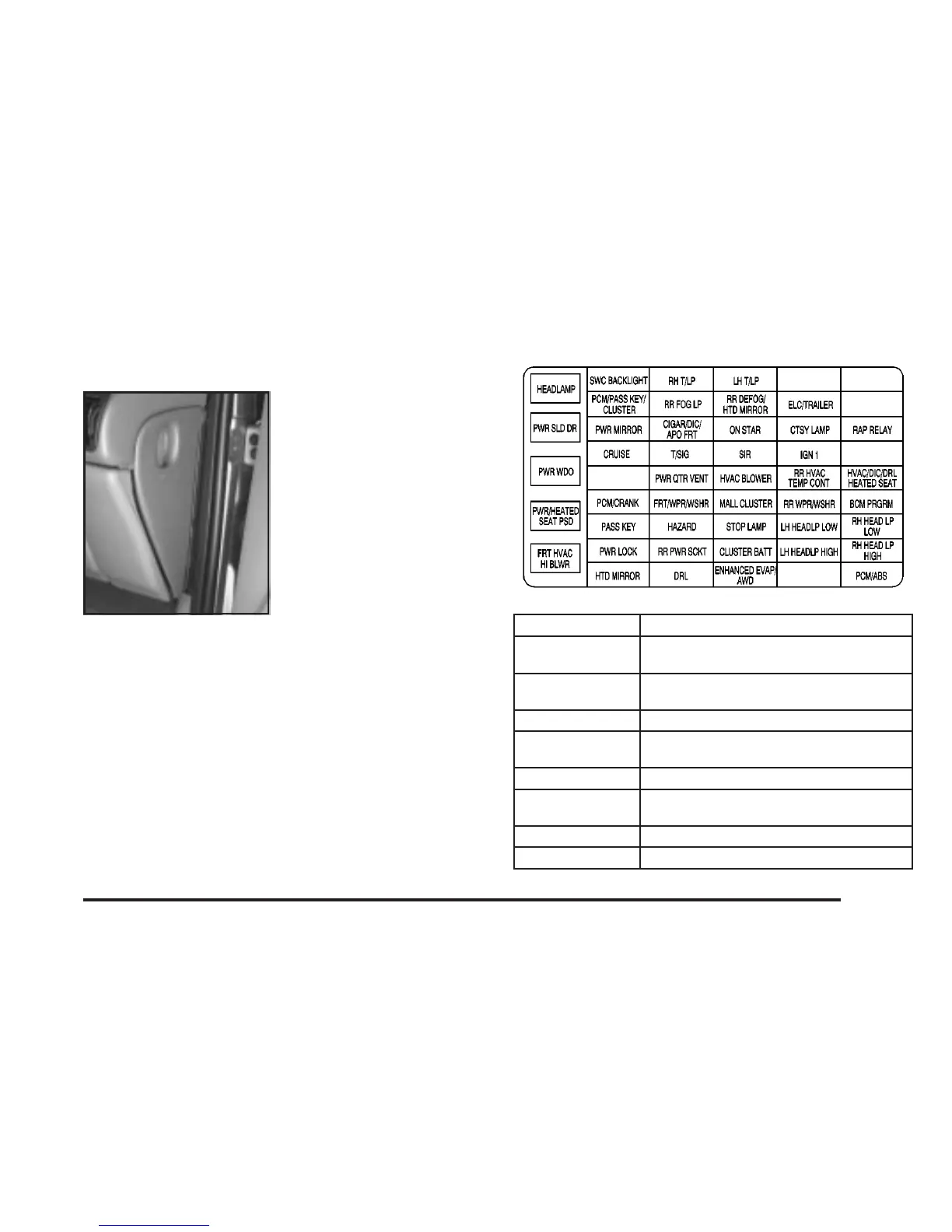

Instrument Panel Fuse Block
The instrument panel fuse
block is located to the right
of the glove box on the
end of the instrument
panel.
Pull the door open to access the instrument panel
fuse block.
Fuse Usage
SWC
BACKLIGHT
Steering Wheel Radio Control
Switches (Illumination)
PCM/PASS
KEY/CLUSTER
Instrument Cluster to PRNDL
Indicators
PWR MIRROR Power Remote Control Mirror Switch
CRUISE
Cruise Control Module, Switch and
Release Switch
Blank Not Used
PCM/CRANK
Powertrain Control Module (PCM),
Ignition Crank
PASS KEY PASS-Key
®
III System
PWR LOCK Power Door Locks
5-97
