10-36 Vehicle Care
Instrument Panel Fuse
Block (Right Side)
The right instrument panel fuse
block is on the right side end of the
instrument panel. To access the
fuses, open the fuse panel door by
pulling out.
To reinstall the door, insert the
bottom tab first, then push the door
back into its original location.

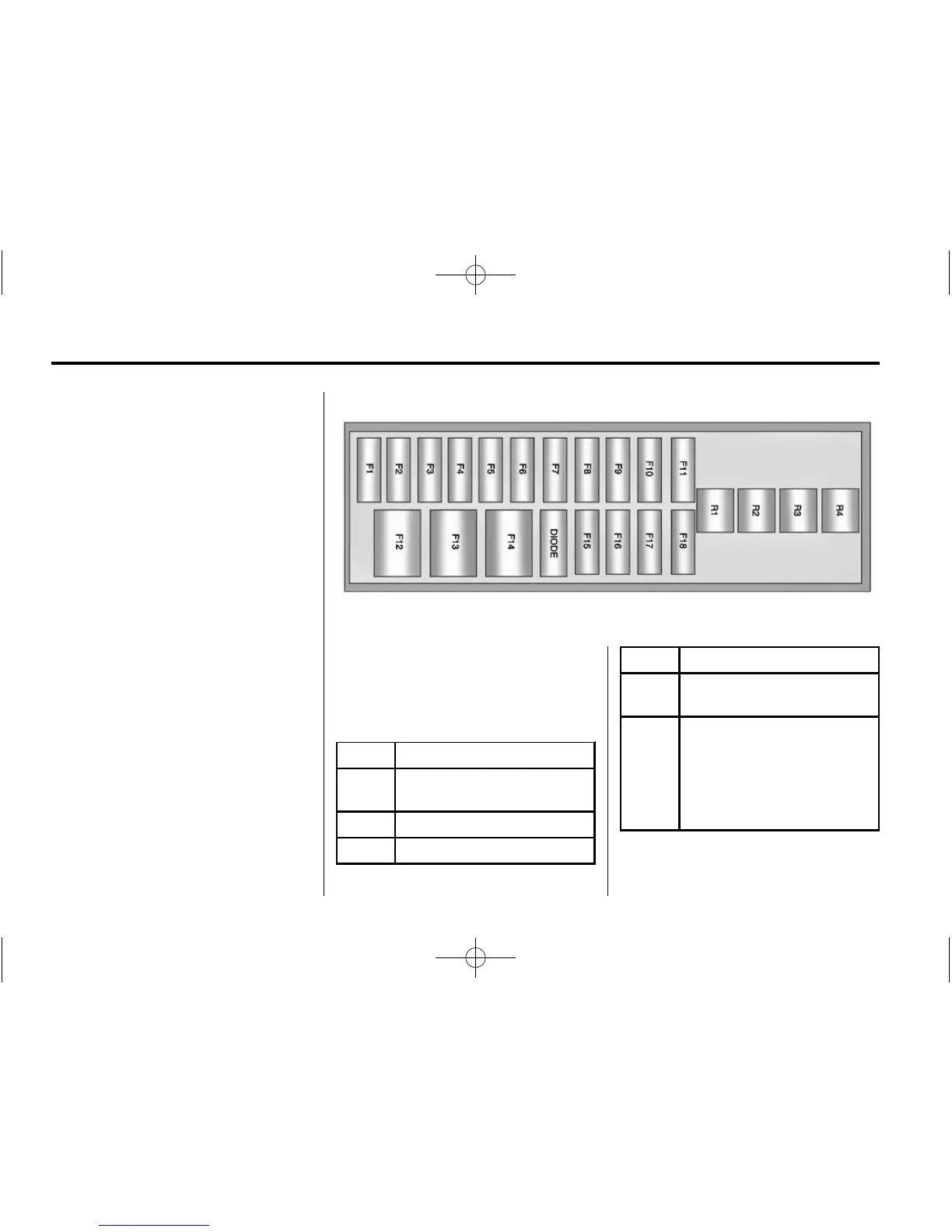

Instrument Panel Fuse Block
A fuse puller is located in the engine
compartment fuse block.
The vehicle may not be equipped
with all of the fuses, relays, and
features shown.
Fuses Usage
F1
Steering Wheel Switch
Backlighting
F2 Empty
F3 Empty
Fuses Usage
F4
Body Control Module 3/
Right Headlamp
F5
Body Control Module 2/
Body Control Module
Electronics/Hatch Lamp/
Right Daytime Running
Lamp/Shifter Lock/Switch
Backlighting
To Next Page
