CHIEF MSM1U - LSM1 U and LTM1 U Dimensions

MSM1U/MTM1U/LSM1U/LTM1U Installation Instructions
4

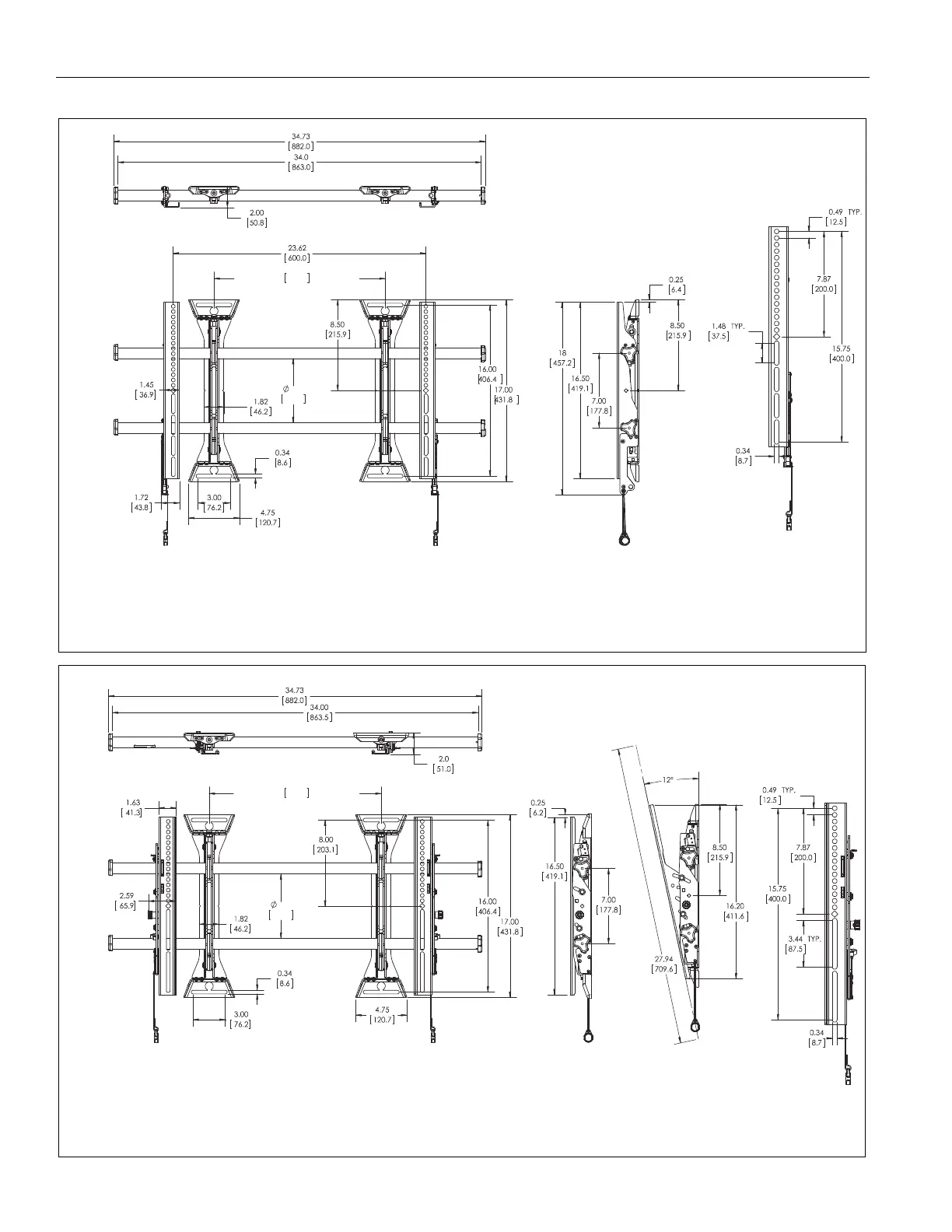

DIMENSIONS--continued
16.00
406.4
MINIMUM WALL UPRIGHT SPACING
6.00
152.4
RAILS CAN BE SLID LEFT OR RIGHT
FOR OFFSET
1. MAXIMUM MOUNTING PATTERN IS 31.7" (805 mm) WITHOUT REVERSING UPRIGHTS
2. MAXIMUM MOUNTING PATTERN IS 34.3" (871 mm) WITH REVERSING UPRIGHTS
3. FOR RECESSED APPLICATIONS, MINIMUM VERTICAL LIFT FOR HOOK
ENGAGEMENT IS .75" (19 mm)
DIMENSIONS: [MILLIMETERS]
INCHES
LSM1U
16.00
406.4
MINIMUM WALL UPRIGHT SPACING
6.00
152.4
RAILS CAN BE SLID LEFT OR RIGHT
FOR OFFSET
1. MAXIMUM MOUNTING PATTERN IS 31.25" (793 mm) WITHOUT REVERSING UPRIGHTS
2. MAXIMUM MOUNTING PATTERN IS 34.6" (878 mm) WITH REVERSING UPRIGHTS
3. FOR RECESSED APPLICATIONS, MINIMUM VERTICAL LIFT FOR HOOK
ENGAGEMENT IS .75" (19 mm)
DIMENSIONS: [MILLIMETERS]
INCHES
LTM1U
