Installation Instructions TIL1X2PT / TIL1X3PT / TIL1X4PT / TILVABPT
16

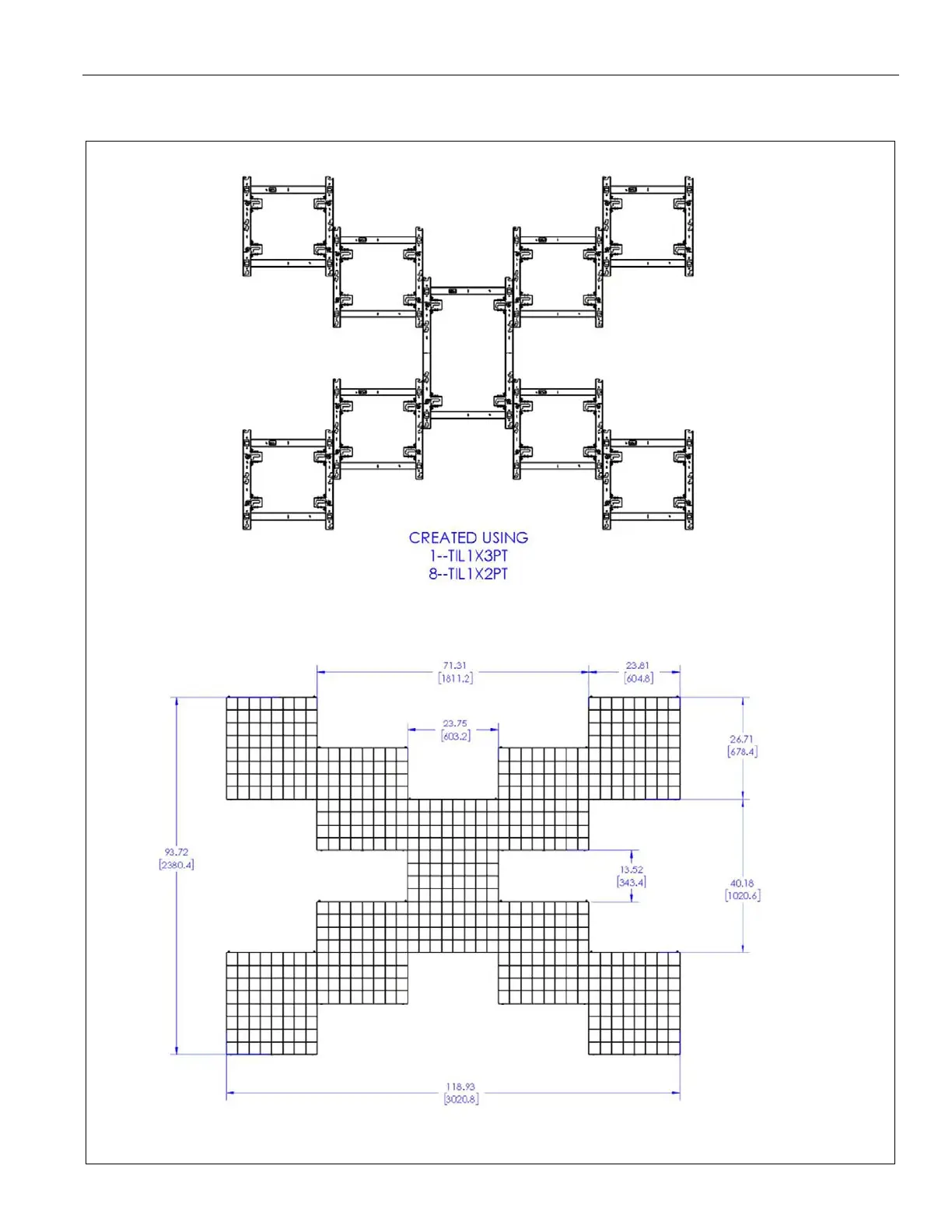

Configuration Examples
The following are just two examples of the many configurations which are possible with the PT Series wall mounts.
