3 Installation of Outdoor Unit
!
WARNING
· The air conditioner must be installed in the place, which is strong enough to support the weight of the machine.
· If it is not strong enough, the machine may fall down and cause some personal injury.
· The special installation must be performed against strong wind or earthquake.
· The falling-down because of incorrect installation may cause some accidents.
3.1 Selection of installation position
1) Enough space for installation and maintenance.
2) No barrier at the air inlet and the air outlet and away from strong wind.
3) Dry and ventilated.
4) The flat supporting surface is able to bear the weight of the outdoor unit. The outdoor unit shall be horizontally installed, without any noise or
vibration.
5) Neighbors shall not be influenced by running noise and exhaust gas.
6) Without inflammable gas leak;
7) Convenient for installation of connecting pipe and electrical connection.

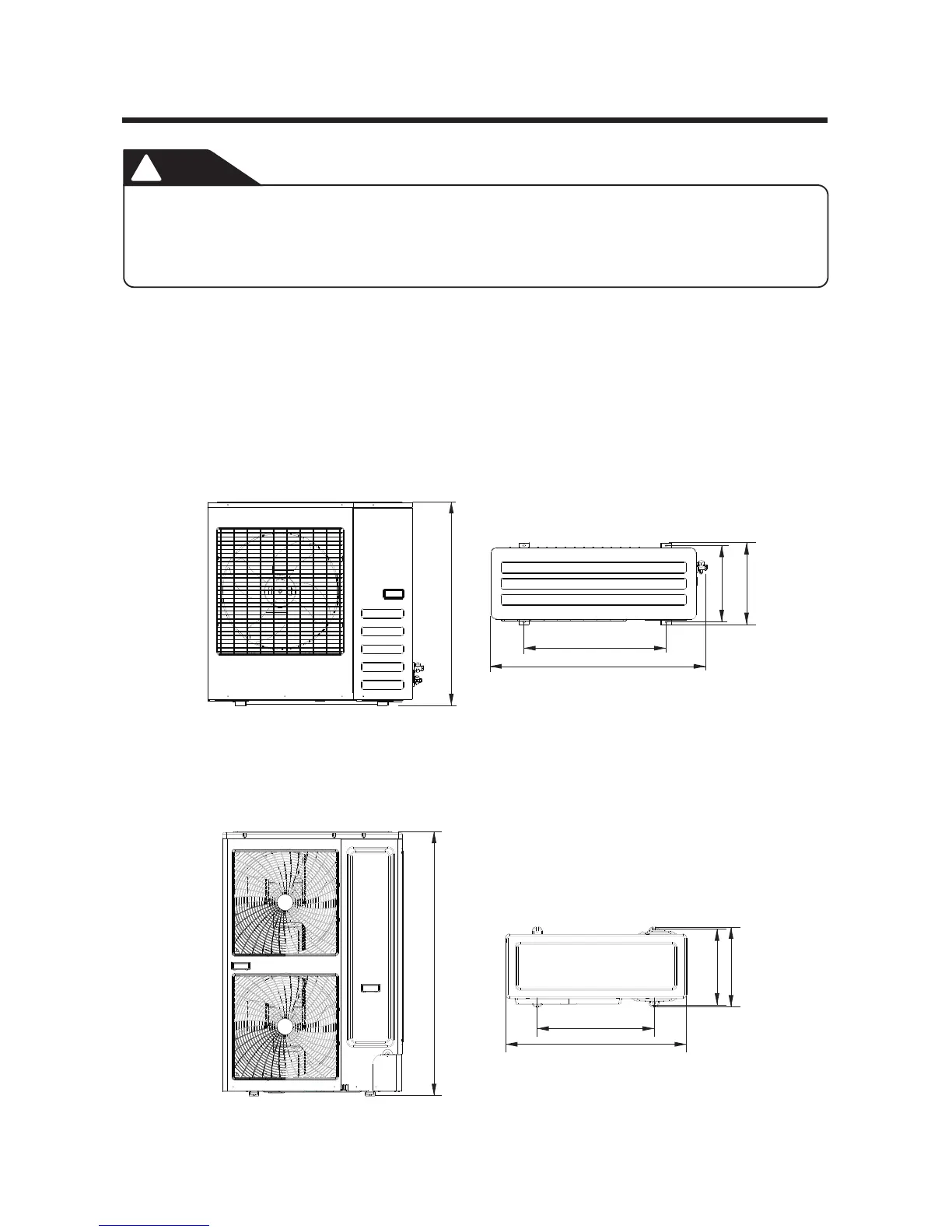

3.2 Dimensional drawing of outdoor unit (Unit: mm)
1) Model :10.5kw:
Fig. 3-2 Dimension of Outdoor Unit
Fig. 3-1 Dimension of Outdoor Unit
1328
345
900
360
585
994
1054
694
370
399
2) Model : 14kw,16kw
