Chiltrix Heat Pump Installation
Heat Pump Installation
Installation position
Note: Installation must be carried out by professional personnel.
The recommended mounting pad should be at least 1 ½” above ground level. If you are in an area where snow
occurs, mount the unit high enough above grade to avoid blockage by drifting snow. You can consider a
properly rated wall mount if desired.
Proper drainage is required at the heat pump unit to avoid flooding the outdoor unit with water or ice. Make
sure condensate has a way to rapidly and completely drain away from the unit.
To install the unit on a balcony or on top of a building, the installation site must meet the allowable load
bearing capacity of the building structure without affecting the structural safety. Ensure the unit is well
ventilated; the direction of air exhaust should be kept away from the windows of neighboring buildings.
Adequate service clearance should be kept around the unit. The unit should not be installed in places
accompanied with oil, inflammable gases; corrosive components e.g. sulfur compound, or high-frequency
equipment.

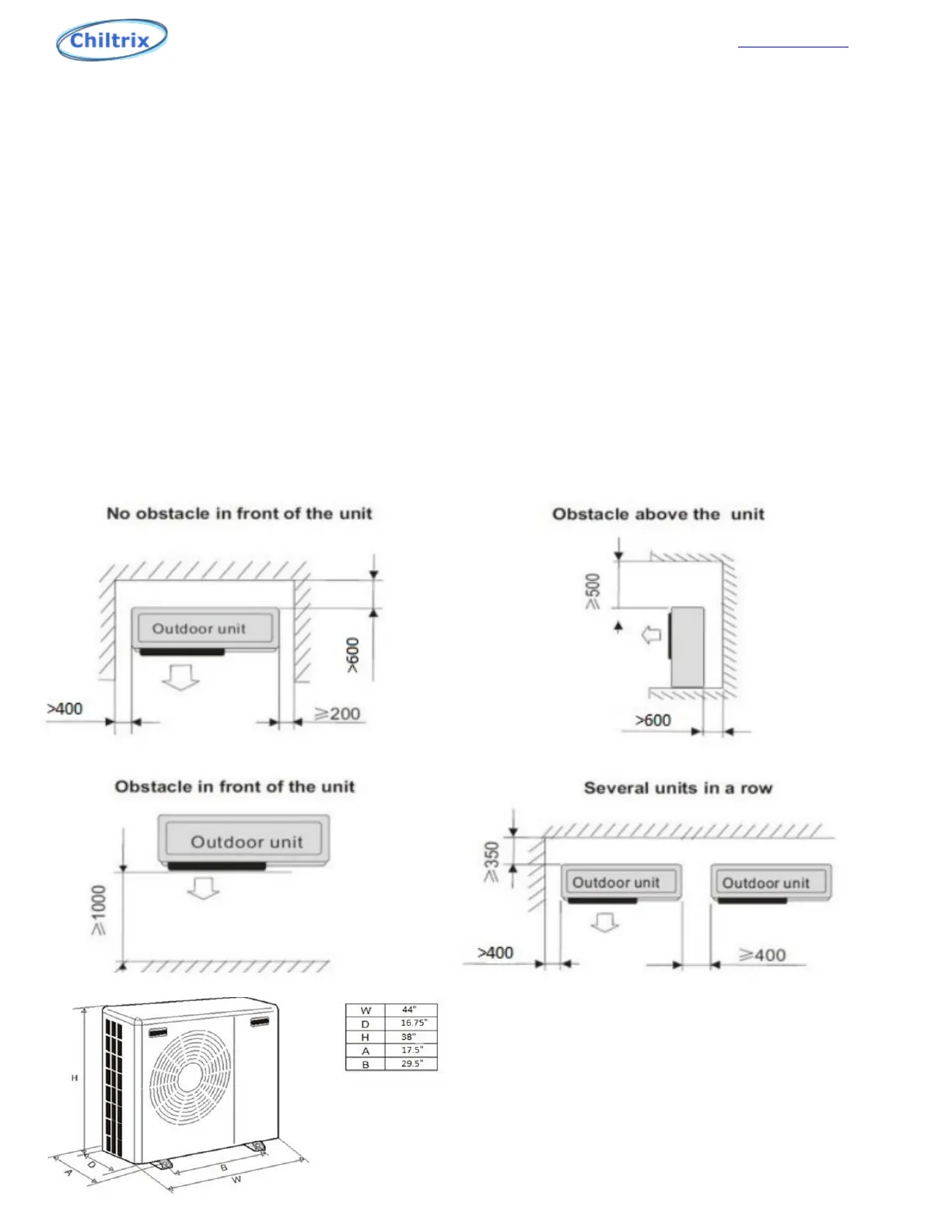

Outdoor Unit Placement / Clearances
(Unit: mm) 200mm = 8” , 350mm =14 “,
400=16”, 500=20”,600 = 24”,1000=40”
