Chiltrix CX50 - Pump Wiring Connections; Power and Control Wire Connections; Pump Ground Wire Connection

Chiltrix Inc. www.chiltrix.com

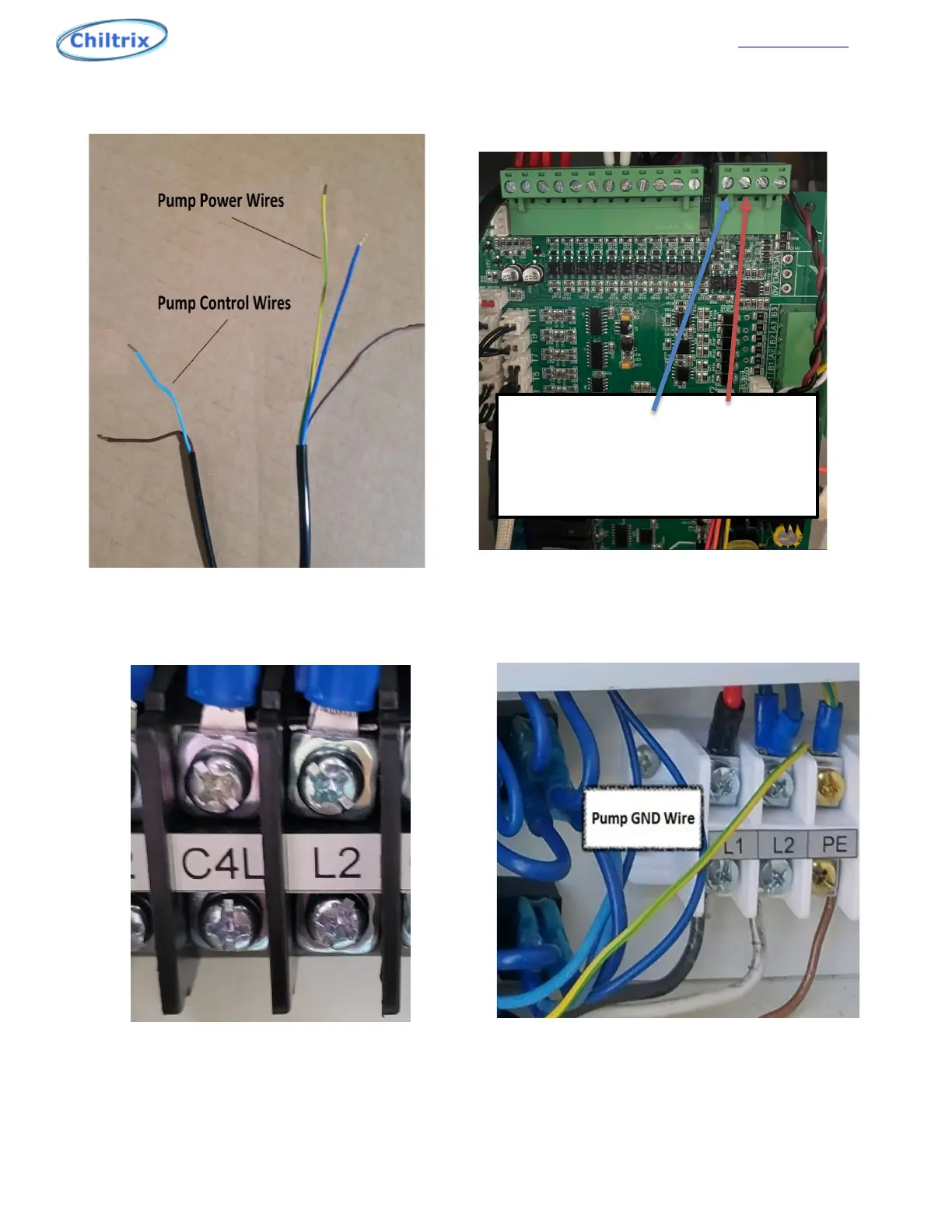

The blue and brown pump CONTROL WIRES are connected to the (+ & -) on
the Pump PWM terminal connector at the top of the main control pcb.
Pump POWER wires. Pump GROUND wire.
16
Pump Control wires
Blue is negative (left)
Brow is positive(right)
