CHINT NP2 Series User Manual

02
3
Installation
1) See Figure 1 and Table 2 for minimum distance between the center of
mounting holes. See Table 3 for installation dimensions of button control
box.

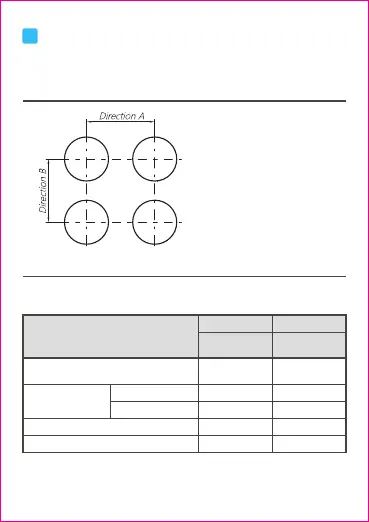

Figure 1 Minimum distance between center of mounting hole
Table 2 Minimum distance between center of mounting hole
Unit:mm
The diameter of the mounting hole for
+0.4
Φ 22 panel mounting button is 22.3
0
mm; the metal head is suitable for
mounting panel with thickness of
1mm~6mm; the plastic head is suitable
for mounting panel with thickness of
1mm~4mm.
Type
Flat type, knob type, handle type,
key type, with indicator, signal light
Φ22 installation
dimensions
Φ22 installation
dimensions
Direction A Direction B
Mushroom type,
self- locking type
Dual head button
Dual head button with indicator
Φ30 Φ40
Φ60
30
30
65
30
30
50
50
65
50
60
