PORTANT NOTES:
Air in the heater may cause the elements to burn out. If the water lines are drained,
allowing air into the heater, be sure to follow the following start-up procedure:
1. Turn off electrical supply – open circuit breaker.
2. Turn on water supply.
3. Expel all air from lines and heater.
4. Turn on electrical power supply – close circuit breaker.

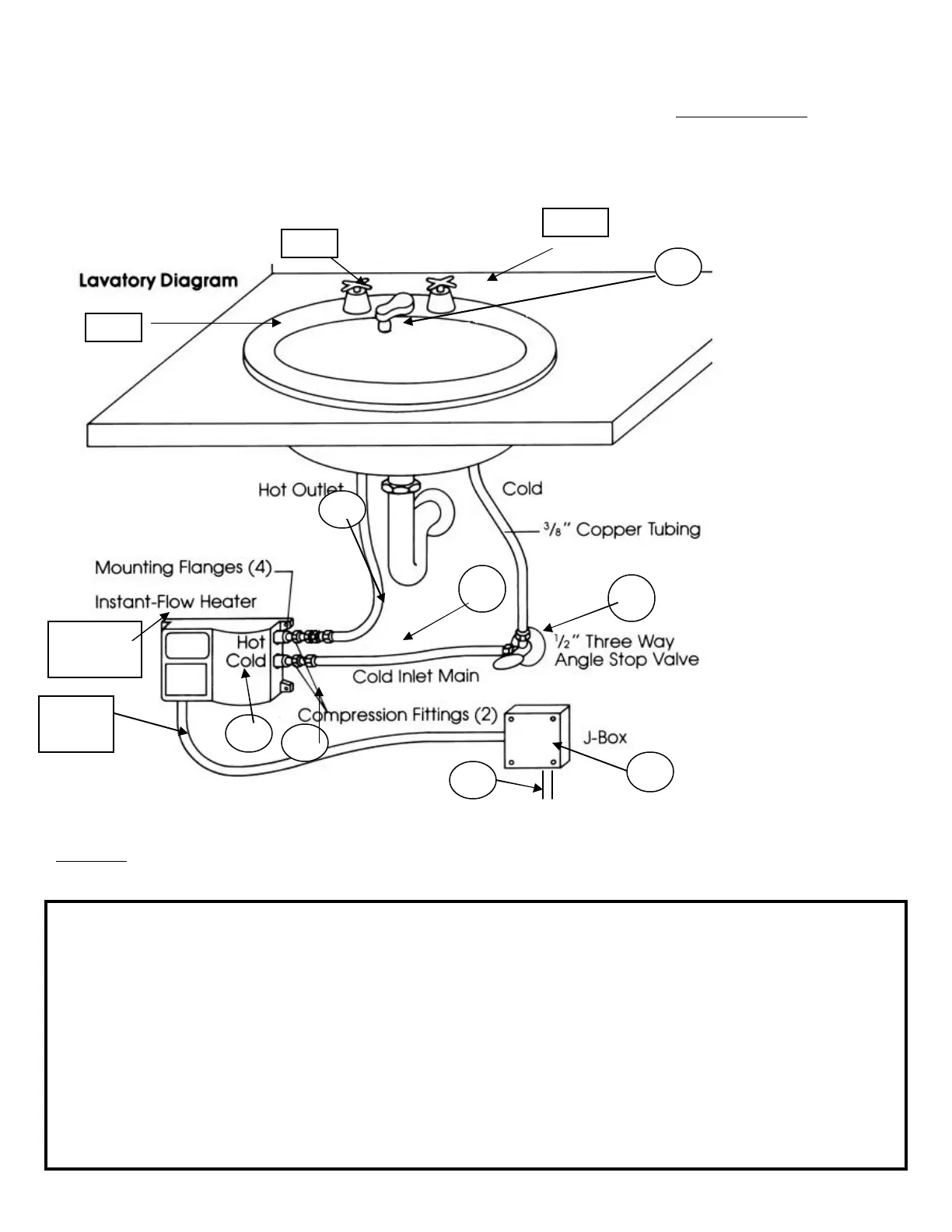

FIGURE 1 HEATER INSTALLATION
Faucet flow controls must be attached to the faucet to allow the water heating system to operate more effectively
(See Fig. 2, pg. 3 for installation).
Item Part No. Names Qty Description
1. SR-_ _ Chronomite Instant-Flow SR Heater 1 Models shown in Table 1
2. Electrical junction box
3. Electrical conduit ½” conduit, length as required
4. Electrical wire Electrical Wire
5. Dual outlet angle valve 1 ½” FPx7/16” comp.x3/8 comp., Brass
Craft P/N R2701R-RGH
6. Fitting (supplied) 2 3/8” comp x ¼”MP
7. Copper or flex tubing 1 3/8” OD, length as required (keep short)
8. A-412 Faucet flow control (supplied) 1 dual thread 15/16” male thread or
55/64” female thread (See Figure 2)
Hot
Si
n
k
Mounting
Flange
Cold
#1
#2
#3
Conduit
#5
#6
#7
#9
#4
#8
