3. Remove the fuel filler cap and hang fuel filler cap by
tether on fuel fill door to prevent damage to body side.
4. After you have stopped pumping fuel, remove the fuel
filler nozzle and replace the fuel filler cap.
5. To close the fuel filler door, press the center-rear edge
(9 o’clock position) of the fuel filler door and then
release. The fuel filler door will latch closed.
NOTE:
• In certain cold conditions, ice may prevent the fuel
filler door from opening. If this occurs, lightly push on
the fuel filler door around the perimeter to break the
ice build up.
• When the fuel nozzle “clicks” or shuts off, the fuel tank
is full.
• Tighten the fuel filler cap about one quarter turn until
you hear one click. This is an indication that the fuel
filler cap is properly tightened.

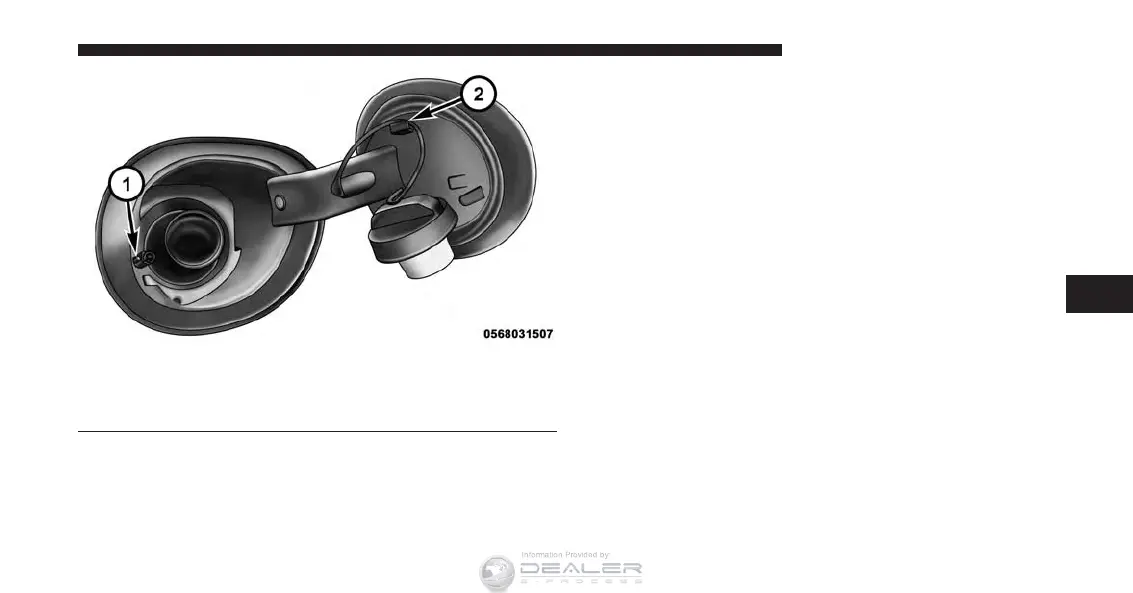

Fuel Filler Door and Fuel Filler Cap Tether Hook
1 — Fuel Filler Door Actuator
2 — Fuel Filler Cap Tether Hook
5
STARTING AND OPERATING 541
