9. Rotate backup lamp socket clockwise 1/4 turn to lock
it into place.
10. Reposition the inner deck panel and secure with a
push pin if removed.
11. Install access cover.
Backup Lamps (Driver Side)
1. Open trunk lid.
2. Remove the drivers side access cover.
3. Remove inner deck lid support push pin.
NOTE: If necessary remove any additional inner deck lid
trim push pins to gain access.
4. Gently pull back the inner deck panel behind the trunk
lid lamp housing to expose the backup lamp socket.
NOTE: passenger side shown the drivers side is similar.

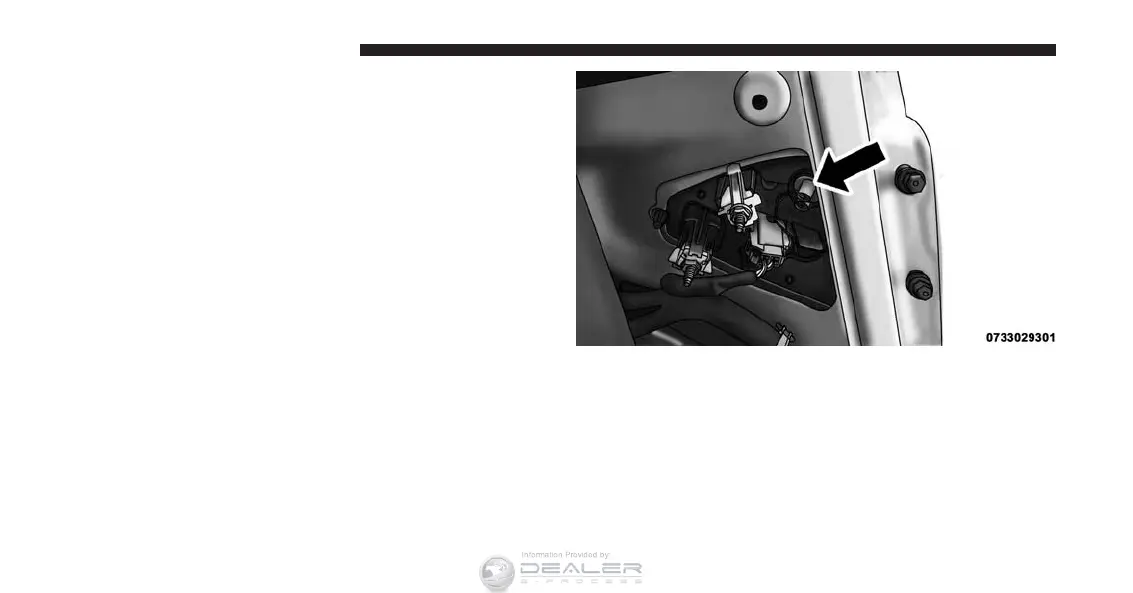

Backup Lamp Socket
5. Rotate the backup lamp socket counter clockwise 1/4
turn to remove the backup lamp socket from the trunk
lid lamp housing.
6. Remove the bulb from the socket and install the
replacement bulb.
648 MAINTAINING YOUR VEHICLE
