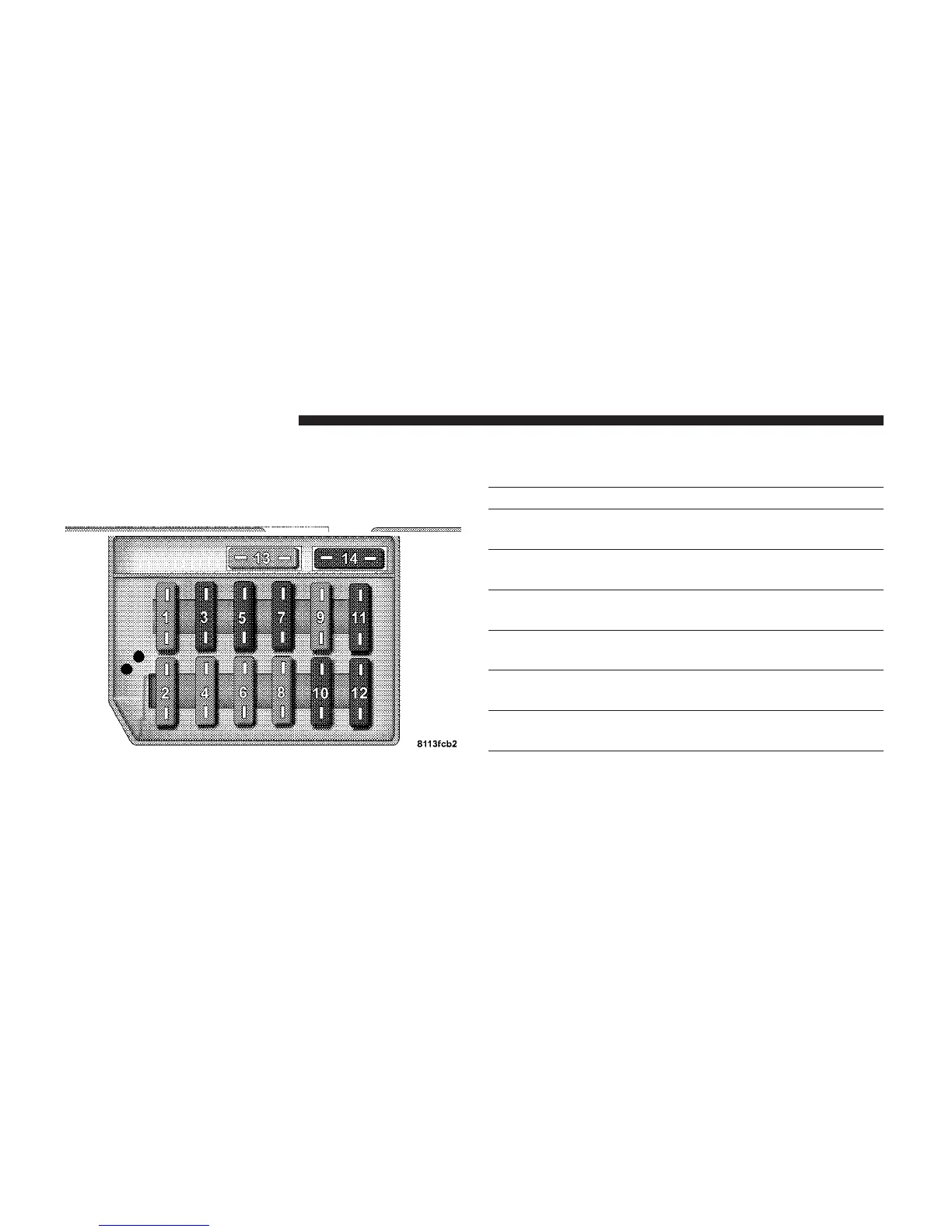

The fuse access door is located on the end of the

instrument panel on the driver’s side behind the trim

panel cover. Use a coin or flat blade screwdriver to open

and close this access door.

Interior Fuses

Cavity Fuse Circuits

1 Not Assigned

2 15 Amp

Blue

Brake Lamp/Speed Control

3 7.5 Amp

Brown

Right High Beam, High Beam

Indicator Light

4 15 Amp

Blue

Reverse/Turn signal Light

5 7.5 Amp

Brown

Left High Beam

6 15 Amp

Blue

Right Low Beam

7 7.5 Amp

Brown

Right Parking/Tail Light Side

Marker

8 15 Amp

Blue

Left Low Beam
