NOTE: It is particularly important, for you to check the
tire pressure in all of your tires regularly and to maintain
the proper pressure.
The TPMS consists of the following components:
•
Receiver Module
•
4 Tire Pressure Monitoring Sensors
•
3 Trigger Modules (mounted in three of the four wheel
wells)
•
Various TPMS Messages, which display in the Elec-
tronic Vehicle Information Center (EVIC), and a
graphic displaying tire pressures.
•
Yellow Tire Pressure Monitoring Telltale Light
Tire Pressure Monitoring Low Pressure Warnings
The TPMS Telltale Lamp will illuminate in the instru-
ment cluster, and an audible chime will be activated
when one or more of the four active road tire pressures
are low. The EVIC will show a graphic display of the
pressure value(s) with the low tire(s) flashing.

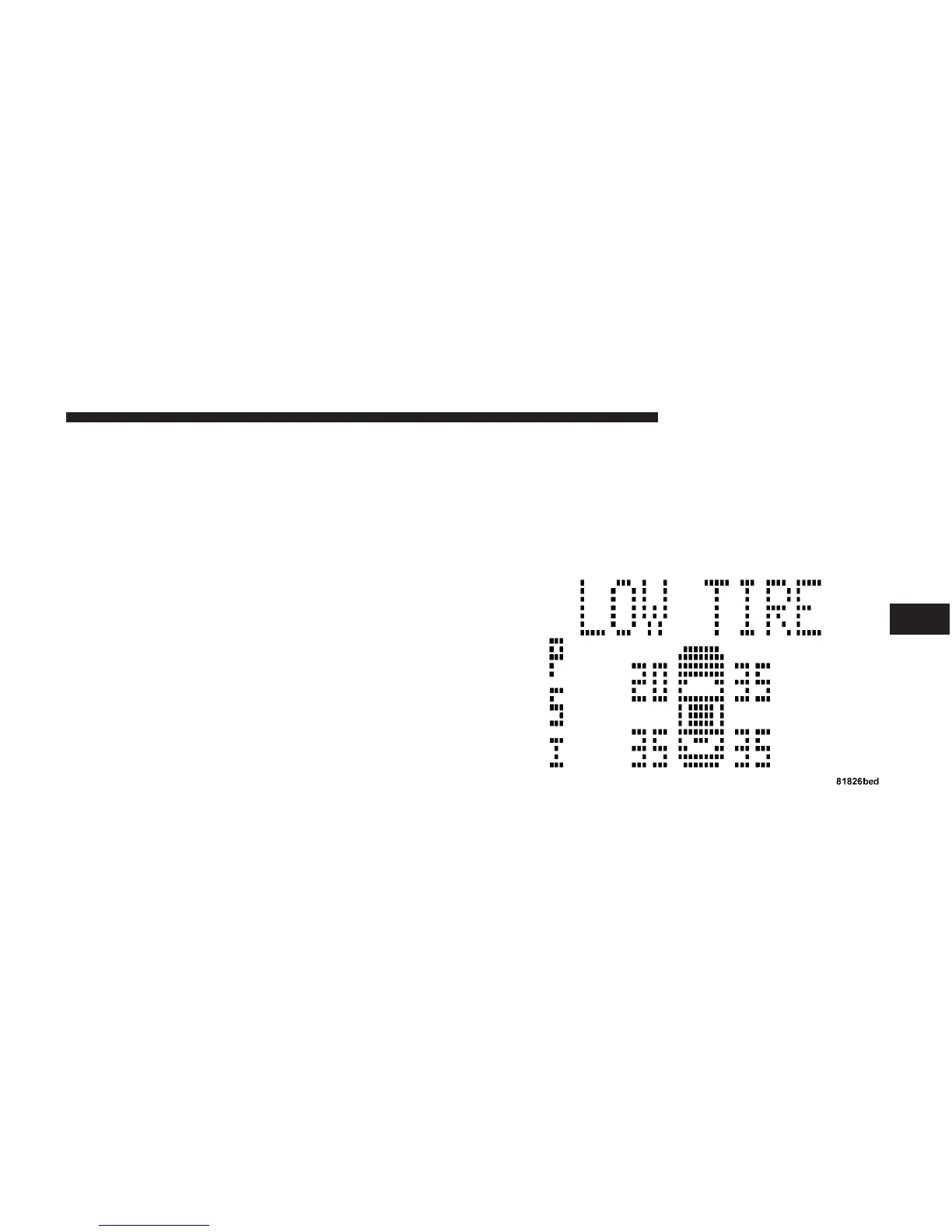

Low Tire Pressure Display
STARTING AND OPERATING 321
5
