The TPMS consists of the following components:
•
Receiver module,
•
Four TPM sensors,
•
Various TPMS messages, which display in the Elec-
tronic Vehicle Information Center (EVIC), and
•
TPM Telltale Light
The matching full size spare wheel and tire assembly (if
equipped) has a TPM sensor. The full size spare can be
used in place of any of the four road tires. A spare with a
pressure below the low-pressure limit will not cause the
TPM Telltale Light to illuminate or the chime to sound.
Tire Pressure Monitoring Low Pressure Warnings

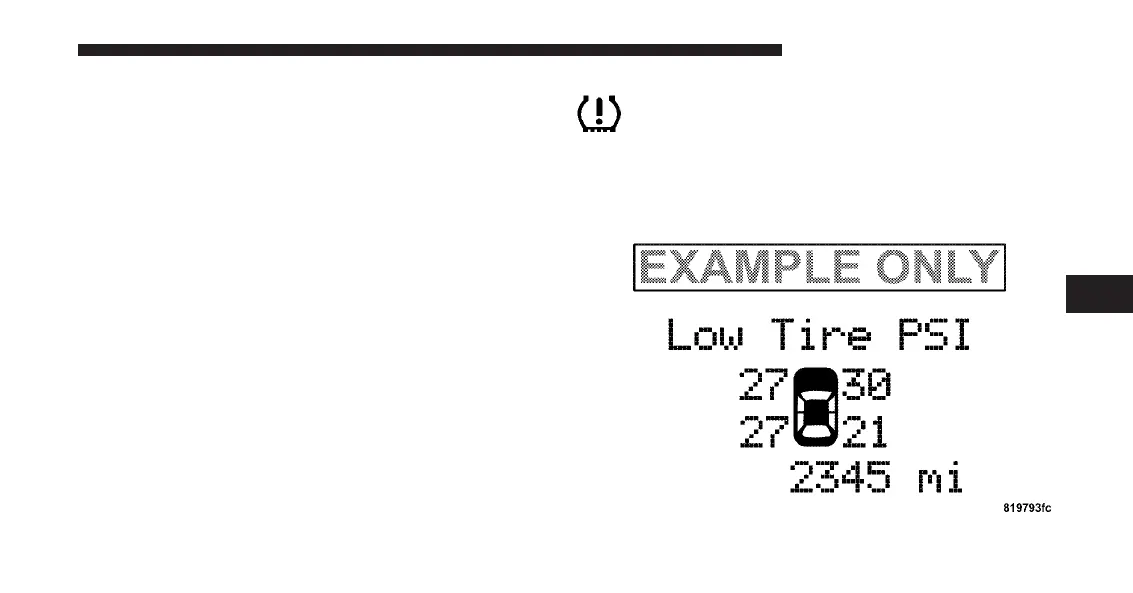

The TPM Telltale Light will illuminate in the instru-
ment cluster and a chime will sound when tire
pressure is low in one or more of the four active road
tires. In addition, the EVIC will display a ⬙LOW TIRE⬙
message and a graphic showing the pressure values of each
tire with the low tire pressure values flashing.
5
STARTING AND OPERATING 409
