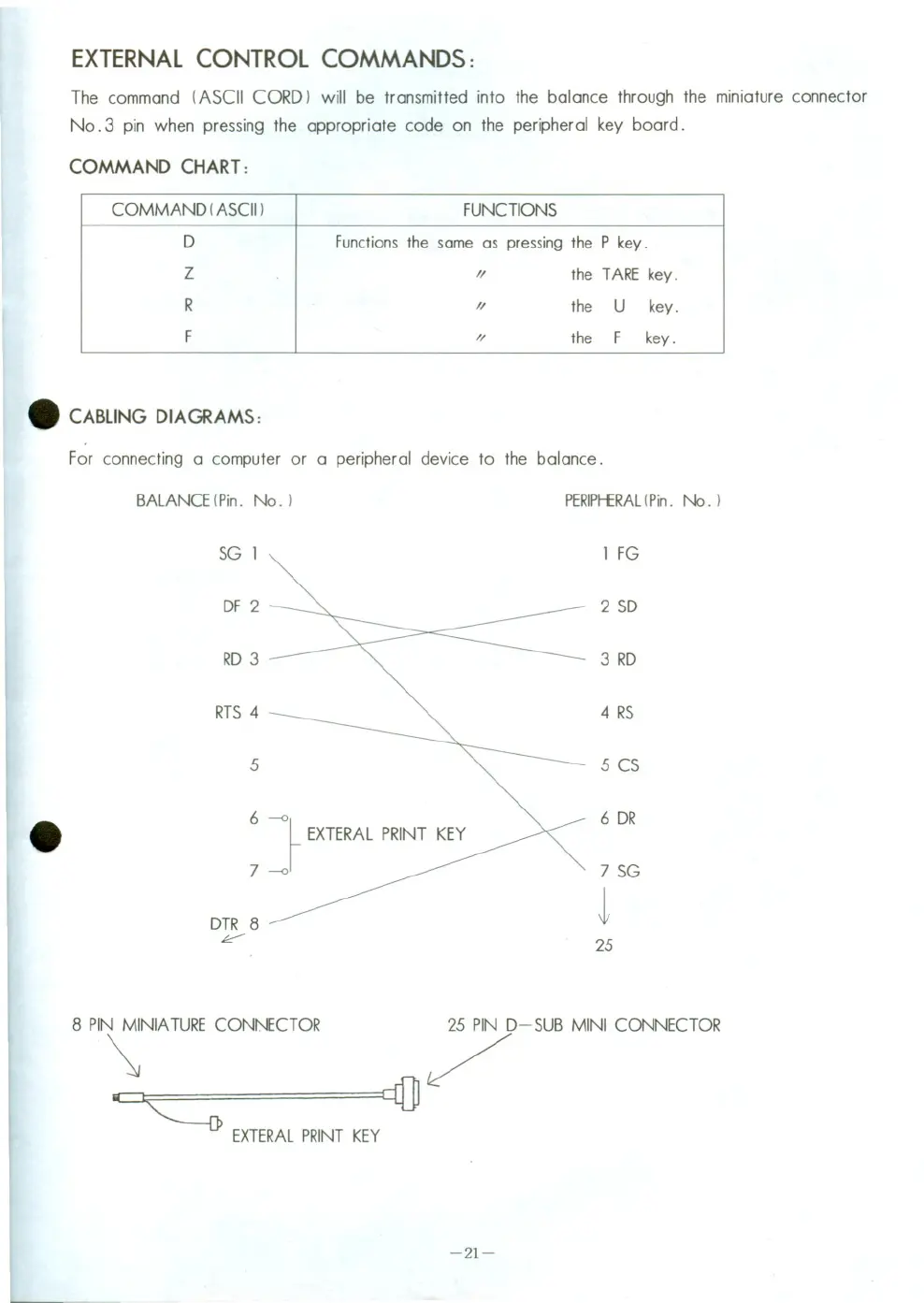

EXTERNALCONTROL COMMANDS:
The command (ASCII CORD) will be transmitted into the balance through the miniature connector
No.3 pin when pressing the appropriate code on the peripheral key board.
COMMAND CHART:
COMMAND (ASCII )
FUNCTIONS
D
Functions the same as pressing the P key.
Z
//
the TARE key.
R
//
the
U
key.
F
//
the
F
key.
eCABLlNG DIAGRAMS:
For connecting a computer or a peripheral device to the balance.
BALANCE (Pin. No.) PERIPI-ERAL(Pin.
No.)
SG 1
1 FG
DF 2
2 SD
RD 3
3 RD
RTS 4
4 RS
5
5 CS
6 ~~
6 DR
EXTERAL PRINT KEY
7-<:>
7 SG
DTR 8
1
~
25
8 PIN MINIATURE CONNECTOR 25 PIN D-SUB MINI CONNECTOR
\ /
c=J eQ]
"----o, EXTERALPRINT KEY
-21-
