Replacing the Football Batteries (cont’d)
+
+
+

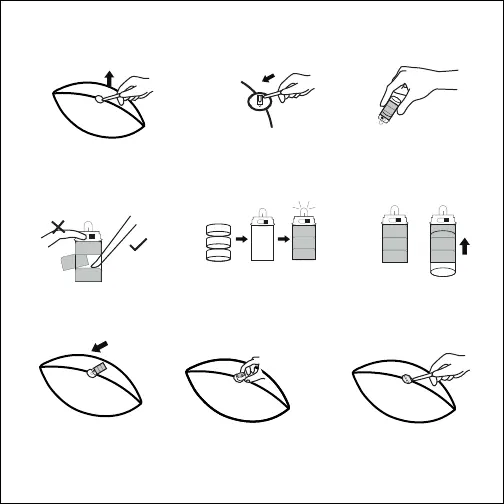

STEP 1
Deate the ball slightly and
use a non-sharp tool such as a
key to pry open the end cap.
Do not use a sharp tool as this
many damage the ball.
STEP 2
Use the hook of the tool to
pull out the light unit.
STEP 3
Pull the transparent tube
containing the batteries
out of the unit.
STEP 4
Use the tool to push the
batteries out of the unit
as shown above.
STEP 5
Insert 3 new LR44 coin cell
batteries with the positive poles
facing down. Do not mix old and
new batteries, or mix dierent
types or brands of battery.
STEP 6
Place the transparent tube
of batteries back into the
light unit.
STEP 7
Return the light unit into
its container in the ball.
STEP 8
Replace the cap, with the
textured side facing
outward. Press into the ball
until secured.
STEP 9
Use the assembly tool to
adjust the cap so that it is
at against the ball surface.
