24

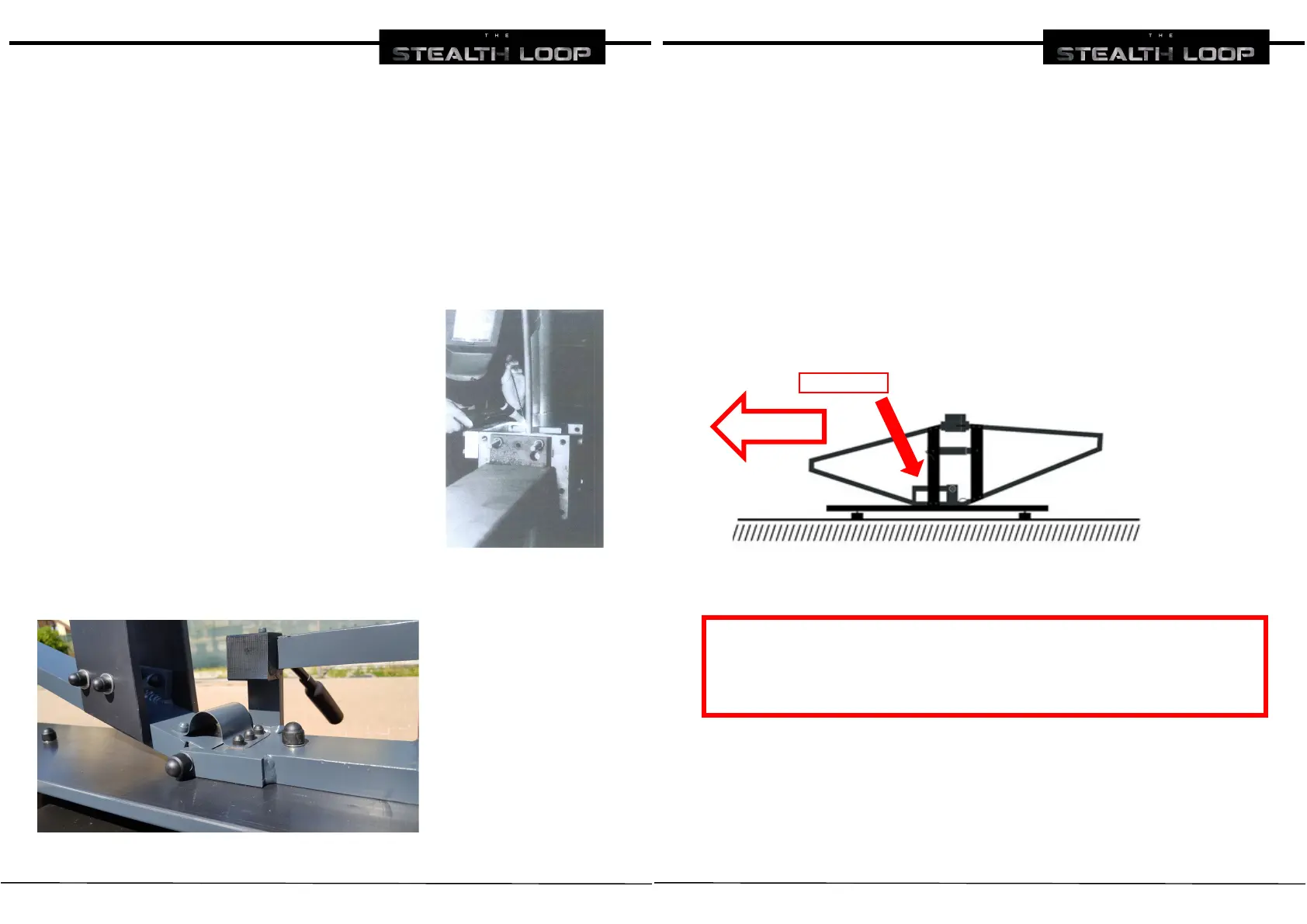

Mechanical assembly
Specialised equipment was used to correctly shape the aluminium tubular
elements to guarantee the structural integrity of THE STEALTH LOOP
T.I.G. (Tungsten Inert Gas) was used to ensure optimal
contact and strength.
The only movable section in the loop is at the bottom.
The specially-shaped blade, made of stainless steel, is
anchored on each semi-loop with three stainless bolts
and anti-oxide paste is applied in the contact point.
25
Where to place THE STEALTH LOOP
This antenna can operate from almost any place.
However, only an outdoors site can guarantee communication at short, medium
and long distance with the best S.W.R.
To achieve the S.W.R. diagram shown in the technical specifications, we highly
recommend placing THE STEALTH LOOP as follows:
leave a space of at least 2 meters all around
place on a flat reflective surface and adjust the height of the rubber feet on the
base
gamma match
FRONT BACK
Safety information
Read carefully this instruction manual before use.
Ciro Mazzoni Radiocomunicazioni assumes no liability if incorrect or dangerous
placement practices are used.
the antenna must be placed at a minimum distance of 5 meters from people or
animals, for safety reasons
WARNING
PLACEMENT OF THIS PRODUCT NEAR POWER LINES IS DANGEROUS.
FOR YOUR SAFETY, FOLLOW THE B
