Electrical and mechanical specifications of THE STEALTH LOOP
Electrical specifications
Continuous frequency coverage 6.6-29.8 MHz

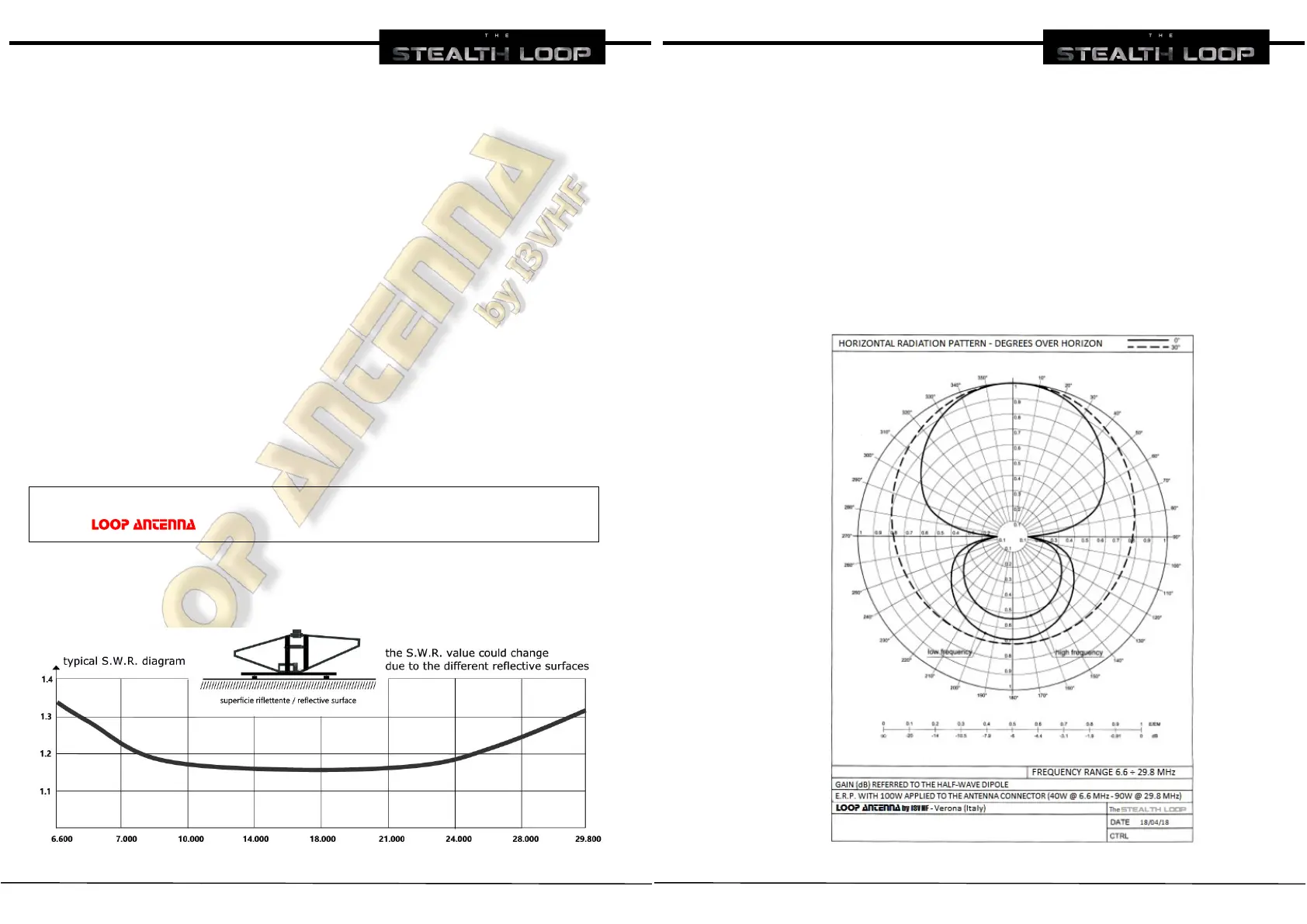

S.W.R. 1,3:1 (typical)
Front to back ratio: 6 dB
Front to side ratio: 25 dB
50 Ohm input with gamma match short circuited
(electrostatic discharge protection)
Negligible noise and harmonics.
Tuning time: 4 seconds average, 10 seconds max
Power rating: 125 W **
Bandwidth : 5 KHz @ 7 MHz
8 KHz @ 14 MHz
15KHz @ 21 MHz
25KHz @ 28 MHz
Gain compared to /2 dipole. (1 point "S" = 6 dB)
- 4 dB @ 7 MHz
- 0.3 dB @ 28 MHz
**NOTE:
with this the peak power is equal to the continuous power
29
Mechanical specifications
Antenna dimensions: 1370x500x260 mm (53.94x19.68x10.24in)
Aluminum alloy 60/60 T.I.G. welded (
Tungsten Inert Gas
)
Tubular elements 60x20mm (2.36x0.79in)- 2mm thickness (0.08in)
All stainless steel hardware
Net/gross weight 10/15kg (22.05lbs/33.07lbs)
