Cirrus SR22T Maintenance Manual

24-30
Page 72
Serials 22-0002 thru 22-0820
EFFECTIVITY:
CIRRUS AIRPLANE MAINTENANCE MANUAL MODELS SR22 AND SR22T
01 Jan 2012

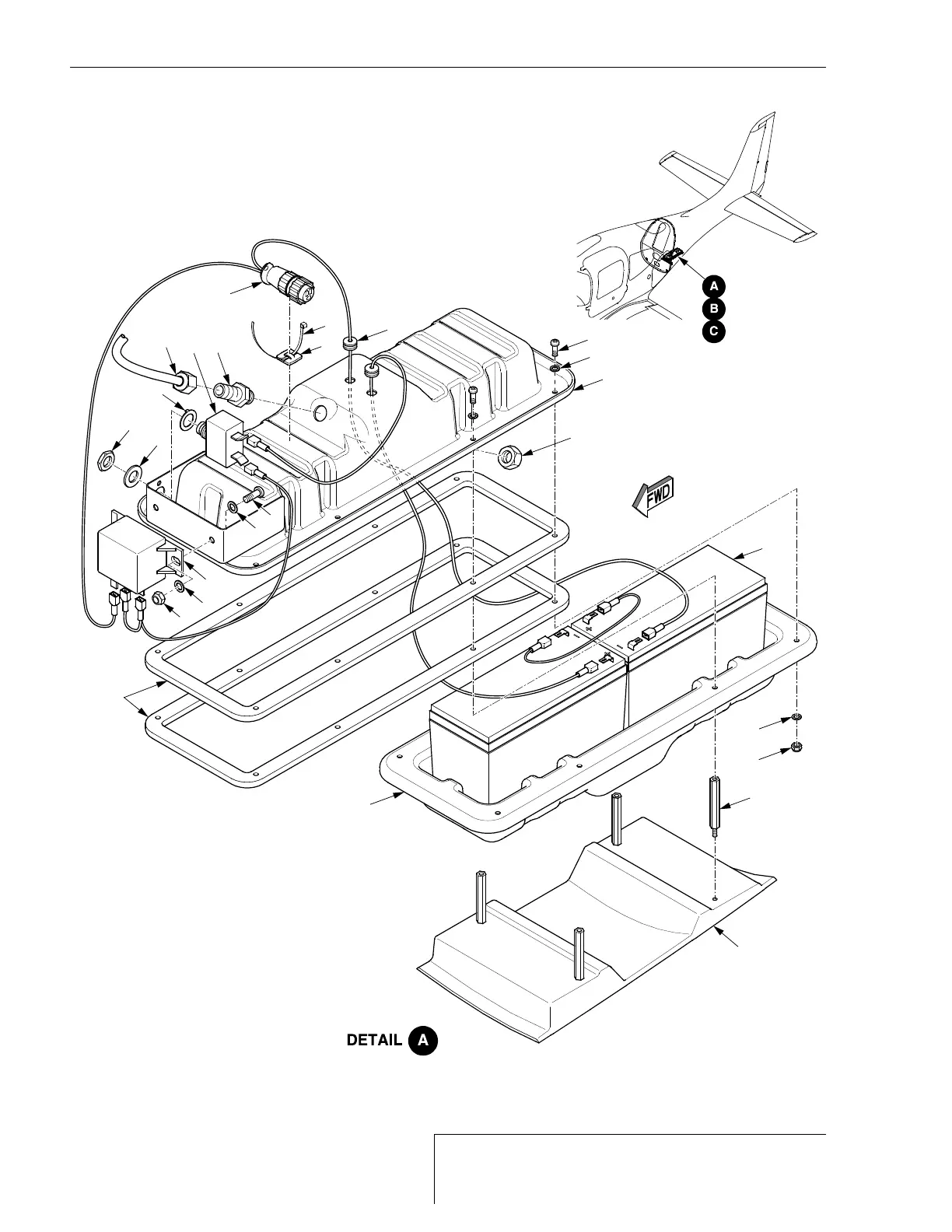

Figure 24-3010
Battery 2 - Serials 22-0002 thru 22-0820 (Sheet 1 of 3)
SR22_MM24_1436C
LEGEND
1. Battery
2. Washer
3. Nut
4. Standoff
5. Mounting Tray
6. Battery Enclosure, Lower
7. Seal
8. Screw
9. Relay
10. Vent Tube
11. Circuit Breaker
12. Bulkhead Fitting
13. Connector
14. Cable Tie
15. Cable Tie Anchor
16. Grommet
17. Battery Enclosure, Upper
18. Tab Washer
1
2
2
2
2
8
17
3
16
15
14
13
12
11
10
3
3
9
7
6
5
4
3
2
8
18
Serials 22-0002 thru 22-0820.
