24-30
Page 74
Serials w/ Perspective Avionics
EFFECTIVITY:
CIRRUS AIRPLANE MAINTENANCE MANUAL MODELS SR22 AND SR22T
15 Dec 2014

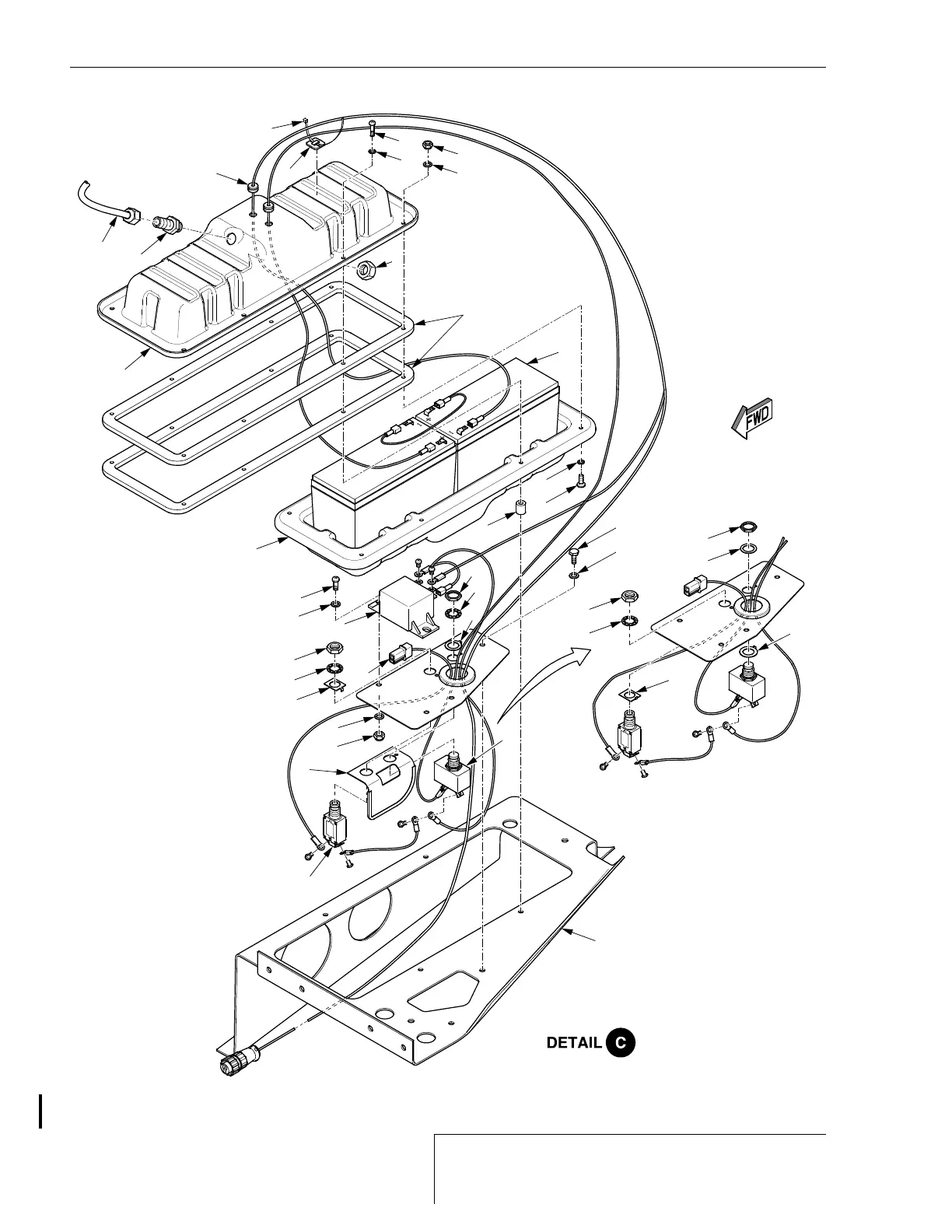

Figure 24-3010
Battery 2 - Serials w/ Perspective Avionics (Sheet 3 of 3)
18
3
2
18
Serials 22-3026 thru 22-3940,
22T-0001 thru 22T-0513.
SR22_MM24_2719A
LEGEND
1. Battery
2. Washer
3. Nut
5. Mounting Tray
6. Battery Enclosure, Lower
7. Seal
8. Screw
9. Relay
10. Vent Tube
11. Circuit Breaker
12. Bulkhead Fitting
13. Connector
14. Cable Tie
15. Cable Tie Anchor
16. Grommet
17. Battery Enclosure, Upper
18. Tab Washer
19. Spacer
20. Bolt
21. Bracket
3
2
3
8
16
2
14
15
10
7
17
12
19
8
6
1
2
5
3
2
18
11
9
18
11
13
3
2
8
2
2
20
2
3
Serials w/ Perspective Avionics.
21
3
2
