Cirrus SR22T Airplane Maintenance Manual

22-11
Page 14
Serials 22-0002 thru 22-1367
EFFECTIVITY:
CIRRUS AIRPLANE MAINTENANCE MANUAL MODELS SR22 AND SR22T
15 Jun 2010

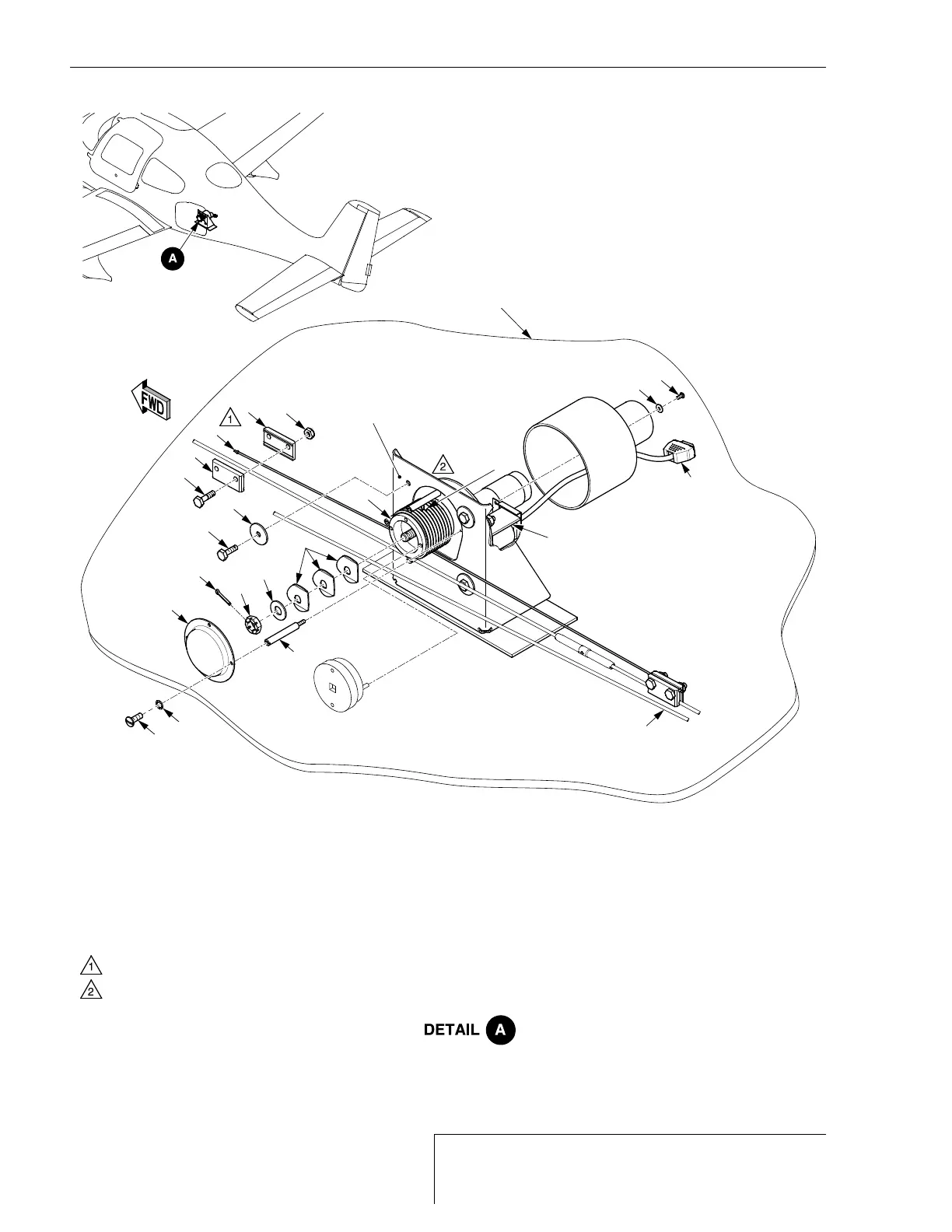

Figure 22-113
Pitch Servo Installation - Serials 22-0002 thru 22-1367 (Sheet 1 of 3)
SR22_MM22_1509B
LEGEND
1. Flapper
2. Plug
3. Screw
4. Washer
5. Capstan
6. Nut
7. Clamp
8. Bridle Cable
9. Bolt
10. Star Washer
11. Capstan Cover
12. Castellated Nut
13. Cotter Pin
14. Cable Guard
15. Tension Washer
16. Servo Motor Cover
17. Bridle Cable Stop Ball
Ensure bridle cable does not rub on cable guards.
NOTE
Before disassembly, mark location of bridle cable.
FUSELAGE BELLY
(REF)
17
SPANNER ADAPTER
12
1
9
9
5
ELEVATOR
CABLE (REF)
2
13
15
4
14
11
3
10
4
8
7
7
6
BRACKET
(REF)
4
3
Serials 22-0002 thru 22-1367.
