Cirrus SR22T Workbook

SR-Series Workbook ___________________________________________________
Cirrus Aircraft, Duluth, MN
16

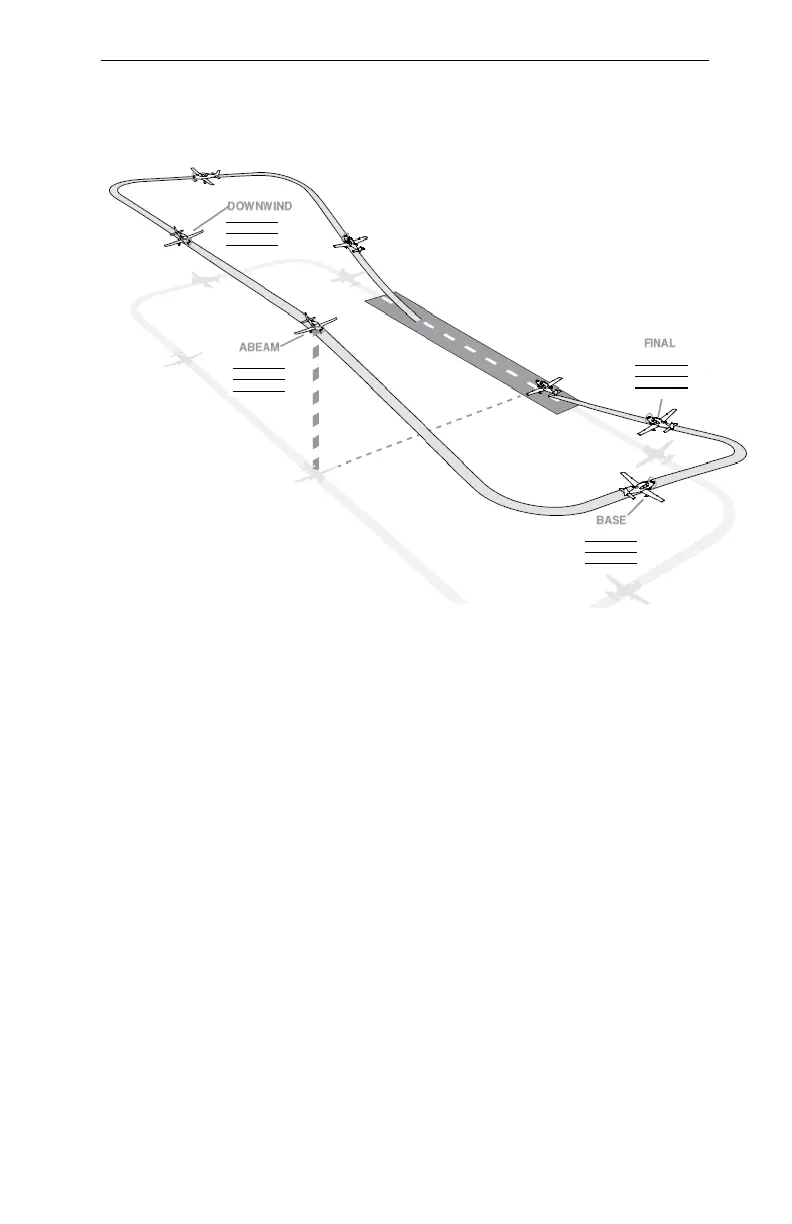

44. Complete the traffic pattern diagram below by labeling the
appropriate; airspeed, power setting, and flap setting for each
section of the traffic pattern. (FOM)

Cirrus SR22T Specifications

General

Manufacturer	Cirrus Aircraft
Engine	Continental TSIO-550-K
Horsepower	315 hp
Max Takeoff Weight	3, 600 lbs
Service Ceiling	25, 000 ft
Cabin Width	49 in
Cabin Height	50 in
Seating Capacity	4
Avionics	Cirrus Perspective+ by Garmin
Category	Single-engine piston aircraft
Propeller	Hartzell 3-blade composite
Wingspan	38 ft 4 in
Length	26 ft
Height	8 ft 11 in
Maximum Cruise Speed	213 KTAS
Fuel Capacity	92 gallons
Stall Speed	64 knots
Safety Features	Cirrus Airframe Parachute System (CAPS)
Cruise Speed	183 knots
