Cirrus System 55X Autopilot Airplane Maintenance Manual

CIRRUS AIRPLANE MAINTENANCE MANUAL MODELS SR22 AND SR22T
22-11
Page 15
Serials 22-1368-1601, 22-1603-1839, 22-1841-1862,
22-1863 & subs, 22T-0001 & subs w/o A/C
EFFECTIVITY:

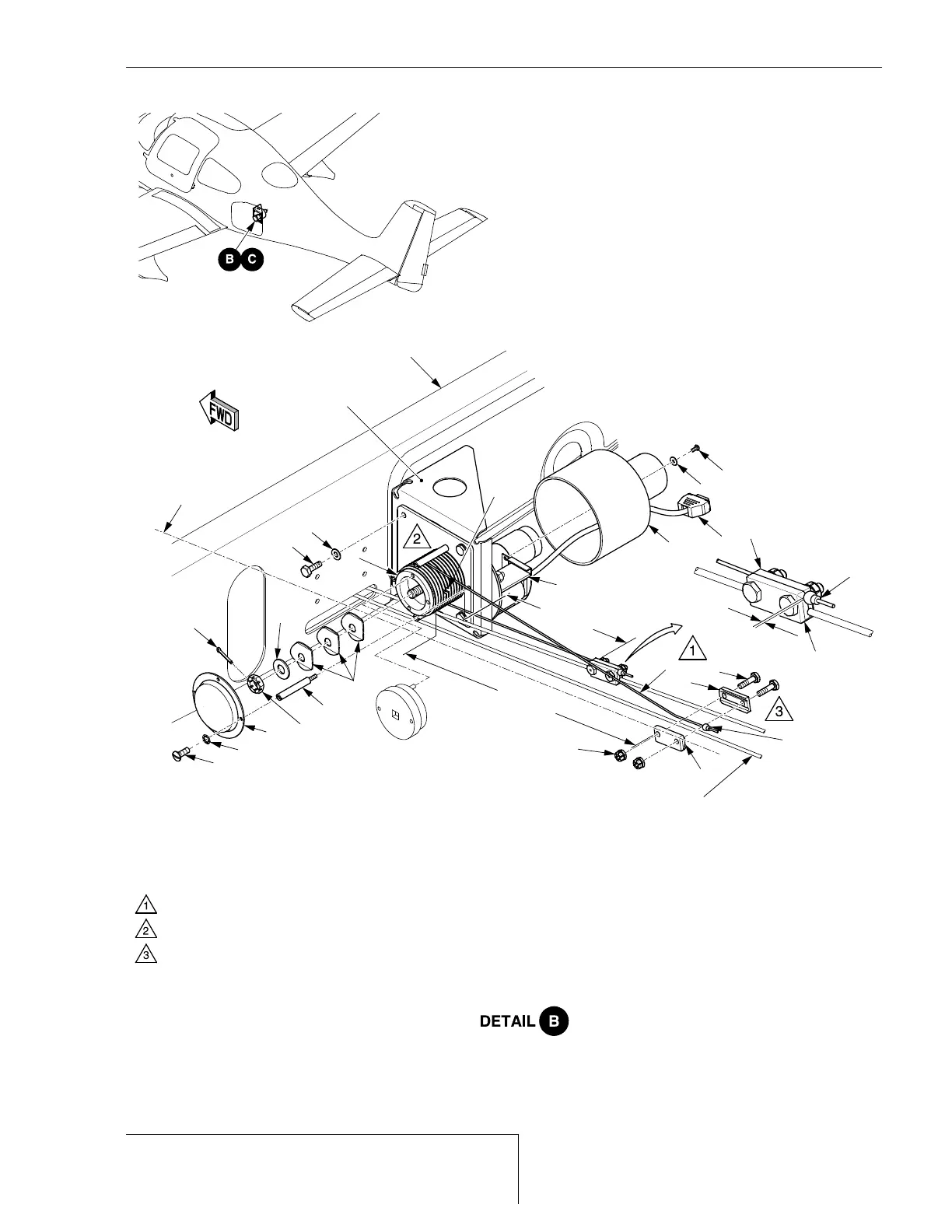

Figure 22-114
Pitch Servo Install - Serials 22-1368-1601, 22-1603-1839, 22-1841-1862, 22-1863 & subs, 22T-0001 & subs w/o A/C (Sheet 2 of 3)
Serials 22-1368 thru 22-1601, 22-1603 thru 22-1839,
22-1841 thru 22-1862, 22-1863 & subs,
22T-0001 & subs w/o Air Conditioning.
SR22_MM22_2137A
6
7
7
9
16
8
1
5
15
14
12
13
9
4
2
4
3
3
SPANNER ADAPTER
ELEVATOR
CABLE (REF)
BRACKET
(REF)
BULKHEAD FS186
(REF)
LEGEND
1. Flapper
2. Plug
3. Screw
4. Washer
5. Capstan
6. Nut
7. Clamp
8. Bridle Cable
9. Bolt
10. Star Washer
11. Capstan Cover
12. Castellated Nut
13. Cotter Pin
14. Cable Guard
15. Tension Washer
16. Servo Motor Cover
17. Bridle Cable Stop-Ball
18. Bridle Cable End Fitting
Install outboard clamp assembly with bolt heads facing inboard and
inboard clamp assembly with bolt heads facing outboard. Align bolt
shafts approximately perpendicular to 0.0 buttock line.
NOTE
Before disassembly, mark location of bridle cable.
4
10
11
Ensure bridle cable does not rub on cable guards.
0.0 BUTTOCK LINE
(REF)
7
7
18
18
17
15 Jun 2010
