22-11
Page 8
Serials 22-0002 & subs w/ Avidyne Avionics
EFFECTIVITY:
CIRRUS AIRPLANE MAINTENANCE MANUAL MODELS SR22 AND SR22T
15 Jun 2010

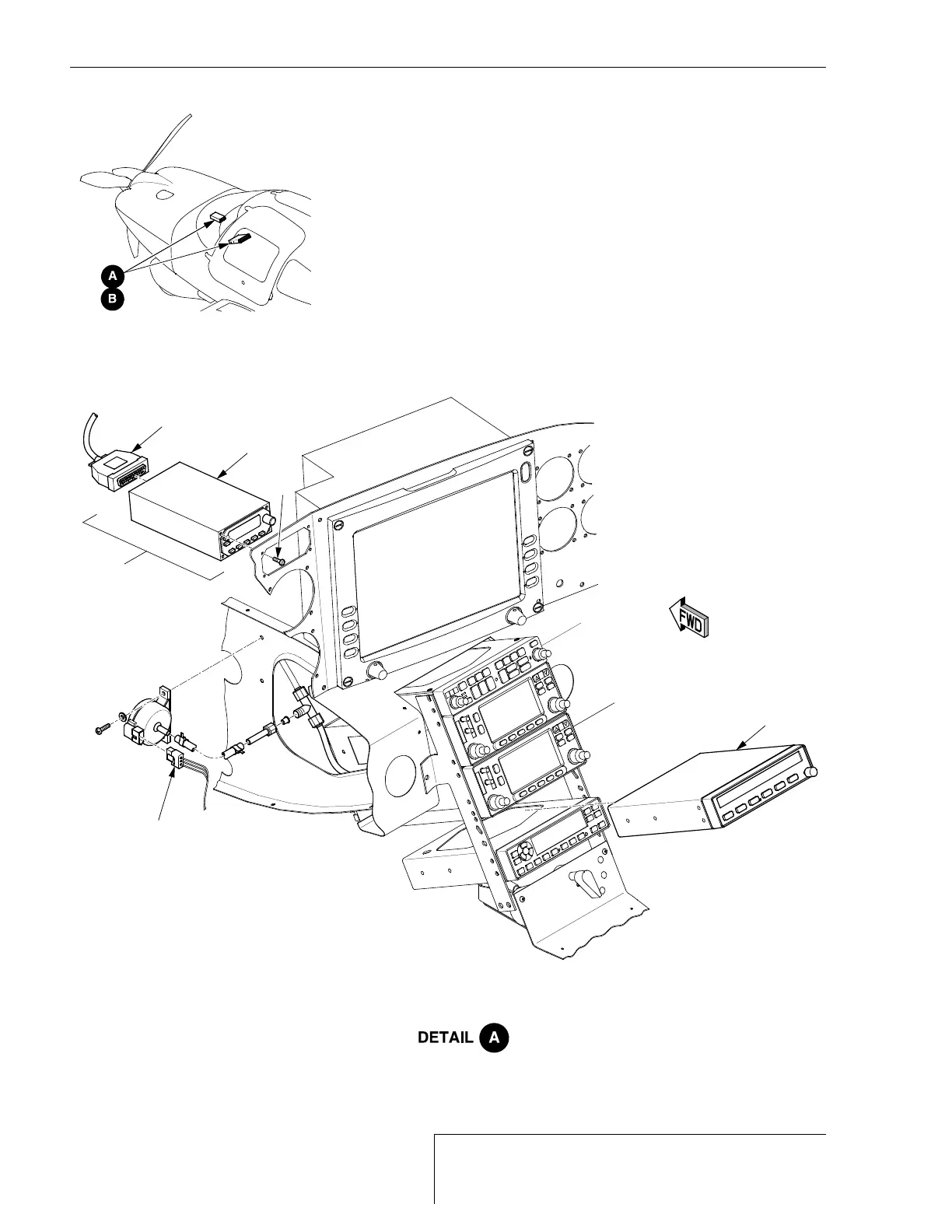

Figure 22-112
System 55X Installation - Serials 22-0002 & subs w/ Avidyne Avionics (Sheet 1 of 2)
Serials 22-0002 & subs w/ System 55X and Avidyne Avionics.
ALTITUDE
TRANSDUCER
(REF)
Serials 22-0002 thru 22-0434
and 22-0435 and subs
w/o PFD.
1
2
4
LEGEND
1. Screw
2. Cable Connector
3. Altitude/Vertical Speed Selector
4. Flight Guidance Program/Computer
3
SR22_MM22_1340D
