Both options - A and B should follow these remaining steps to complete the mounting procedure:
1. Assemble dongle, USB, cable and antenna together in advance.
2. Pick up the wall-mounting bracket (700-121609-01) and 2 SCREWS (48-0580-01).
3. Align and fasten the screws.
4. Plug the USB cable to the USB port on the chassis to complete the mounting procedure.
Install and Upgrade Internal Modules and Field Replaceable Units
15
Install and Upgrade Internal Modules and Field Replaceable Units

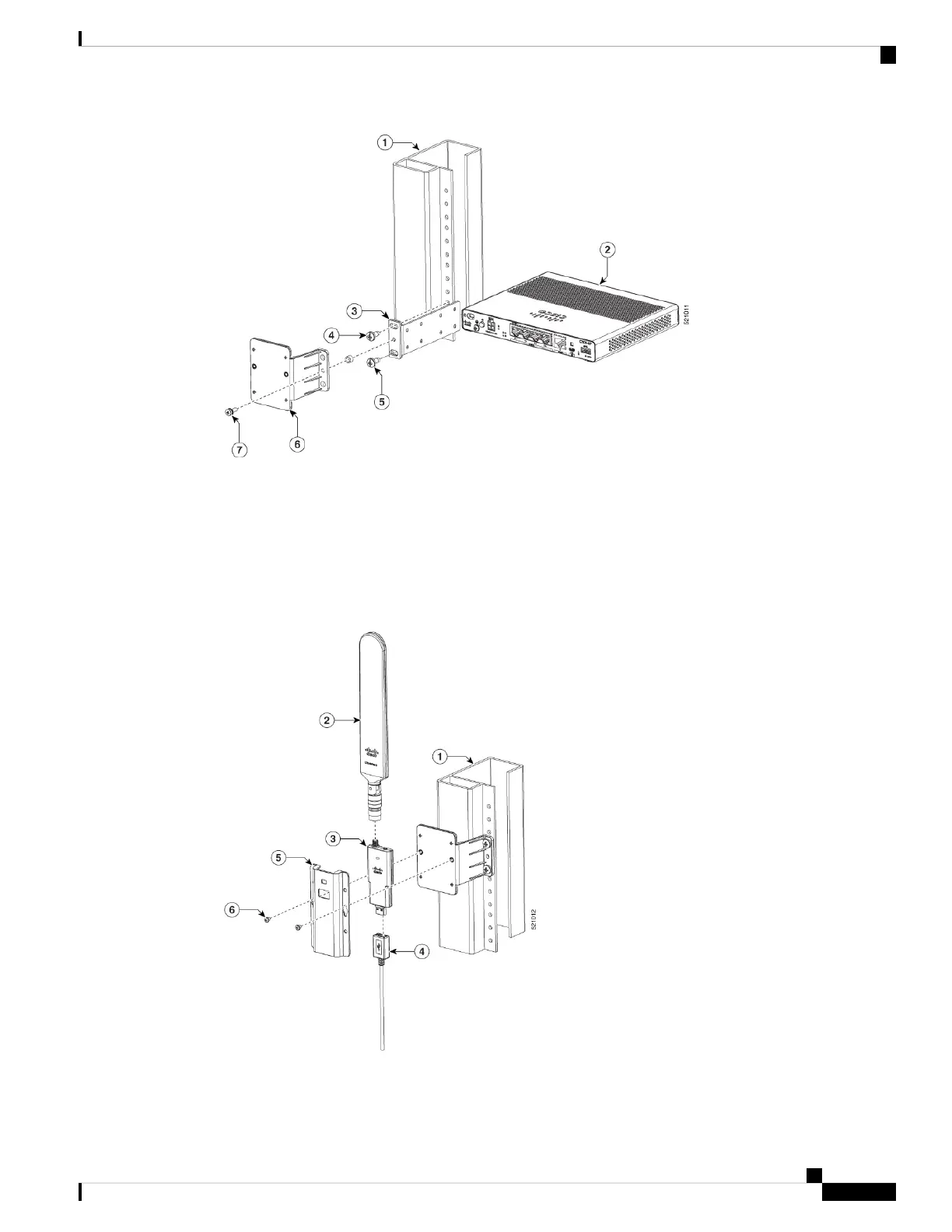

Option A - Rack Mount at the Same Height with the Platform
