Wall Mount using DIN Rail Brackets
The router is shipped with DIN Rail brackets that are to be secured on the bottom side of the chassis. Your
chassis installation must allow unrestricted airflow for chassis cooling.
Wall mount using DIN Rail brackets is applicable only for C111x.
Note
To attach the DIN Rail brackets to the router chassis, use the PHMS screws and the plastic spacers provided for each
bracket.

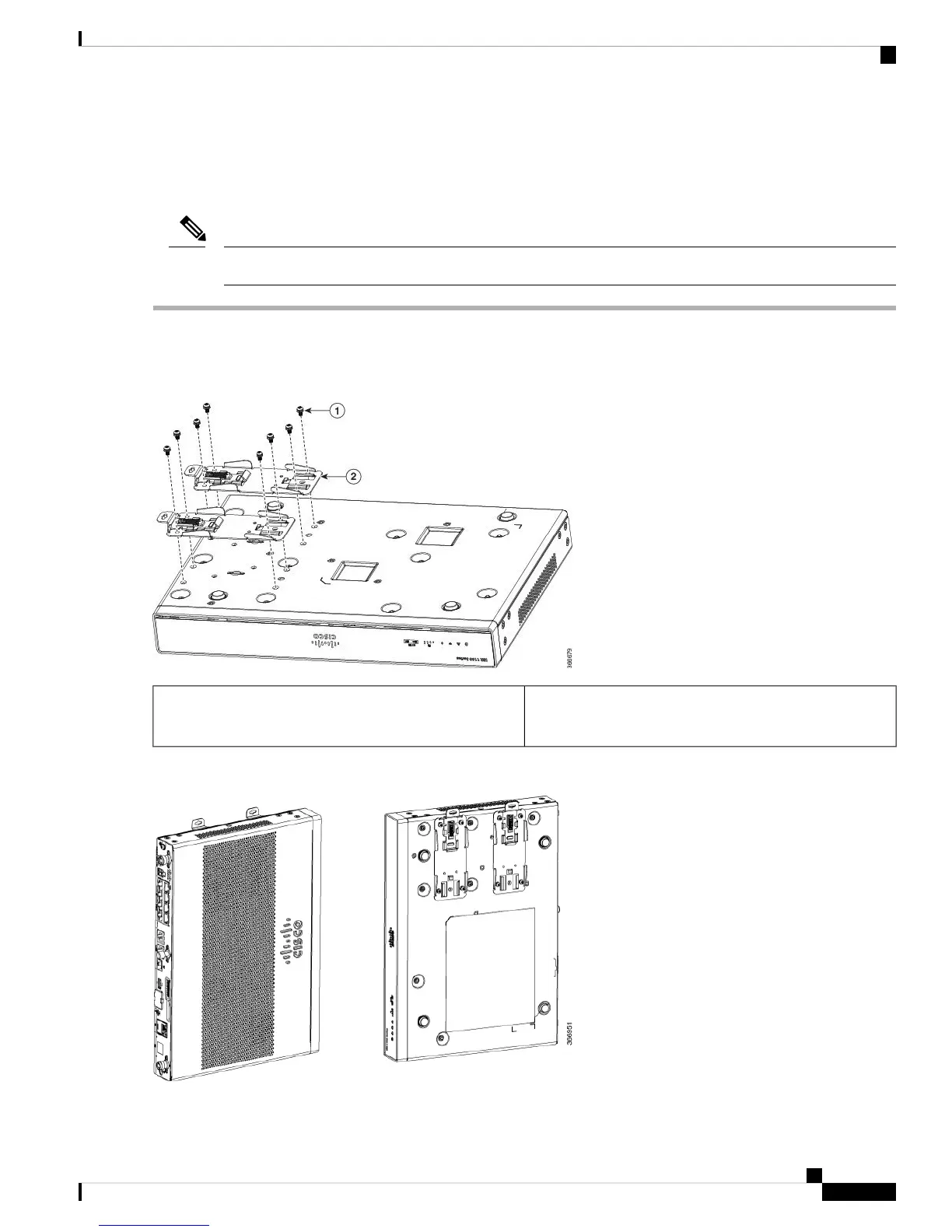

Figure 19: DIN Rail Bracket Installation-C111x
Screws1
DIN Rail Brackets2
Figure 20: Orientation of DIN Rail Brackets
Hardware Installation Guide for the Cisco 1000 Series Integrated Services Router
31
Install and Connect the Router
Wall Mount using DIN Rail Brackets
