Cisco 12000 Series Hardware Installation Guide

2-9
8-Port Channelized T1/E1 SPA LEDs

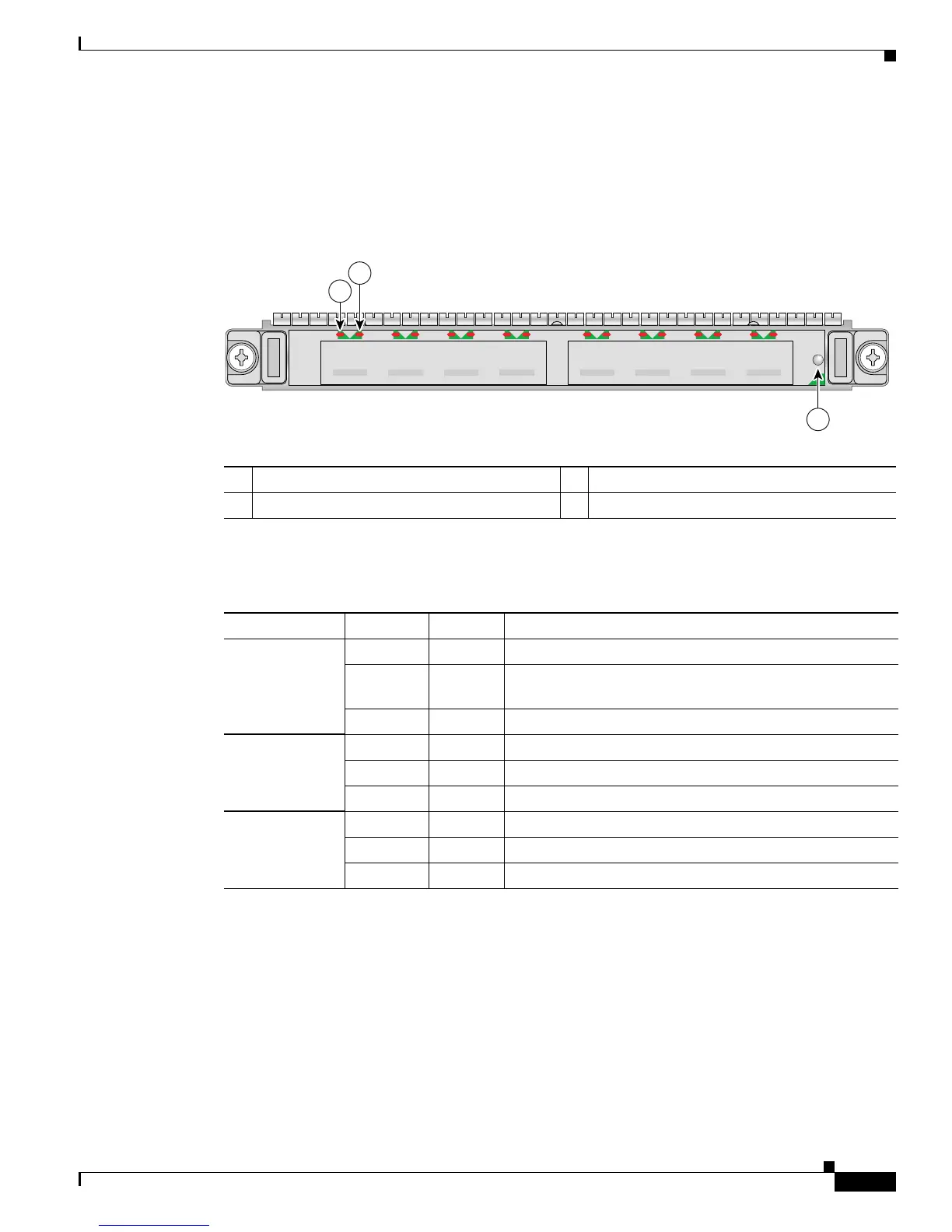

8-Port Channelized T1/E1 SPA Faceplate
8-Port Channelized T1/E1 SPA Interface Specifications
The E1 interface on the 8-Port Channelized T1/E1 SPA uses RJ-48c receptacles for E1 (120-Ohm) cables
with RJ-45 connectors. You can use all ports simultaneously. Each E1 connection supports interfaces that
meet G.703 standards. The RJ-45 connection does not require an external transceiver. The E1 ports are
E1 interfaces that use 120-ohm unshielded twisted pair (UTP) cables.
C/A (Carrier/Alarm) LED STATUS LED
A/L (Active Loopback) LED
STATUS
3
116852
SPA-8XCHT1/E1
C/A A/L
0
C/A
3
A/L A/L A/LC/A
2
C/A
1
C/A A/L
4
C/A
7
A/L A/L A/LC/A
6
C/A
5
1
2
Table 2-7 8-Port Channelized T1/E1 SPA LEDs
Port is enabled by software, and there is a valid T1 or E1 signal
without any alarms.
Port is enabled by software, and there is at least one alarm.
A/L
Port is enabled by software, loopback is off.
Port is enabled by software, loopback is on.
