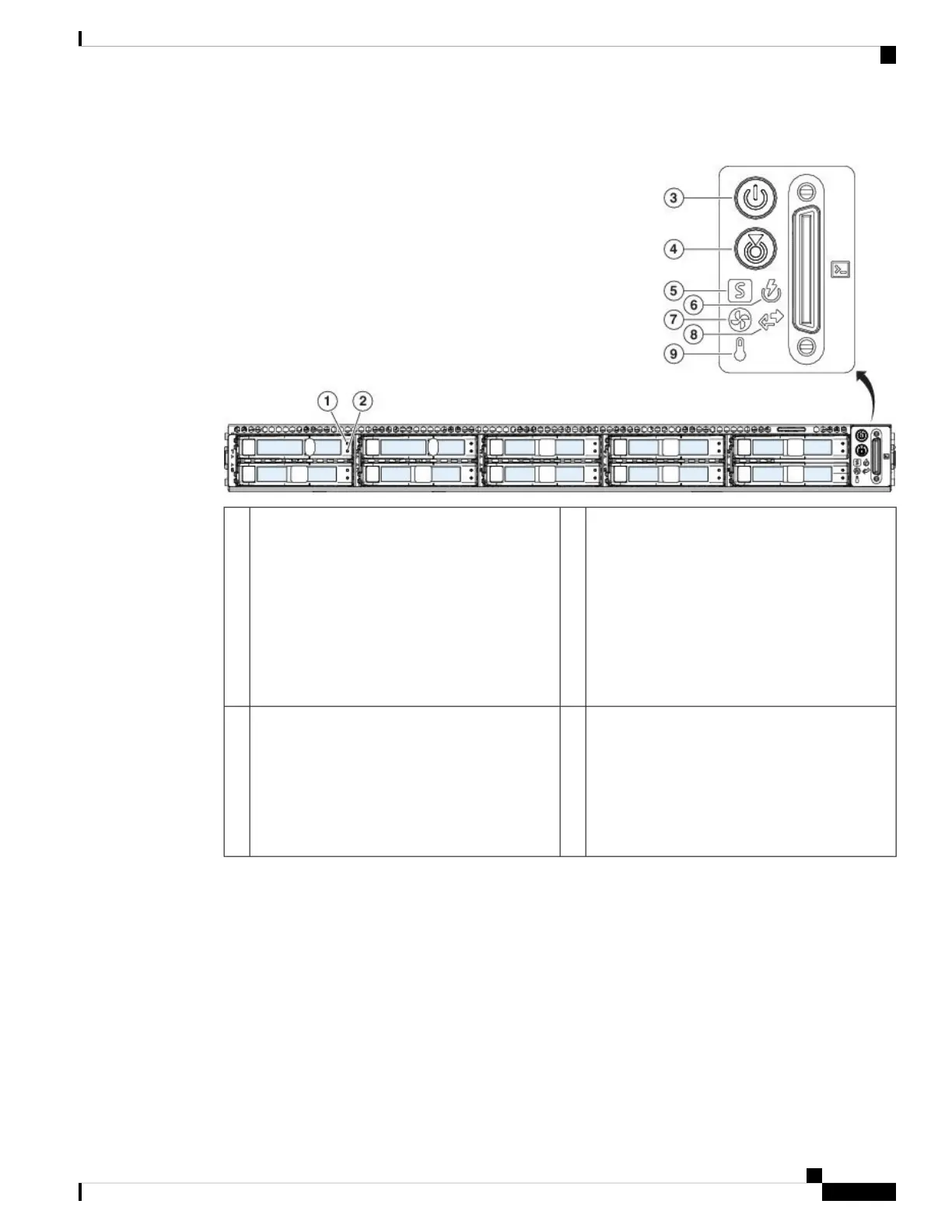

Figure 2: Front Panel LEDs and their States
Drive activity LED:
• Off—There is no drive in the drive tray (no
access, no fault).
• Green—The drive is ready.
• Green, flashing—The drive is reading or
writing data.
2Drive fault LED:
• Off—The drive is operating properly.
• Amber—Drive fault detected.
• Amber, flashing—The drive is rebuilding.
• Amber, flashing with 1-second
interval—Drive locate function activated in
the software.
1
Unit identification LED:
• Off—The unit identification function is not
in use.
• Blue, flashing—The unit identification
function is activated.
4Power LED:
• Off—There is no AC power to the chassis.
• Amber—The chassis is in standby mode.
• Green—The chassis is in main power mode.
Power is supplied to all components.
3
Cisco Firepower Management Center 1600, 2600, and 4600 Getting Started Guide
3
Firepower Management Center 1600, 2600, and 4600 Getting Started Guide
Front Panel LEDs and their States

Cisco 1600 Specifications

General

Type	Router
Connectivity Technology	Wired
Network / Transport Protocol	TCP/IP, IPX/SPX, AppleTalk
Form Factor	Desktop
Power Source	AC adapter
Operating System	Cisco IOS
Routing Protocols	RIP, IGRP
Flash Memory	8 MB
DRAM	16 MB
Data Link Protocol	Ethernet, Fast Ethernet
Remote Management Protocol	SNMP, Telnet
Status Indicators	Power
Features	Firewall protection, DHCP support, NAT support, VPN support
RAM	16 MB
Data Transfer Rate	10 Mbps
Network Technology	Ethernet
