Cisco 2811 and Cisco 2821 Integrated Services Router FIPS 140-2 Non Proprietary Security Policy
OL-8663-01
Cisco 2811 and Cisco 2821 Routers

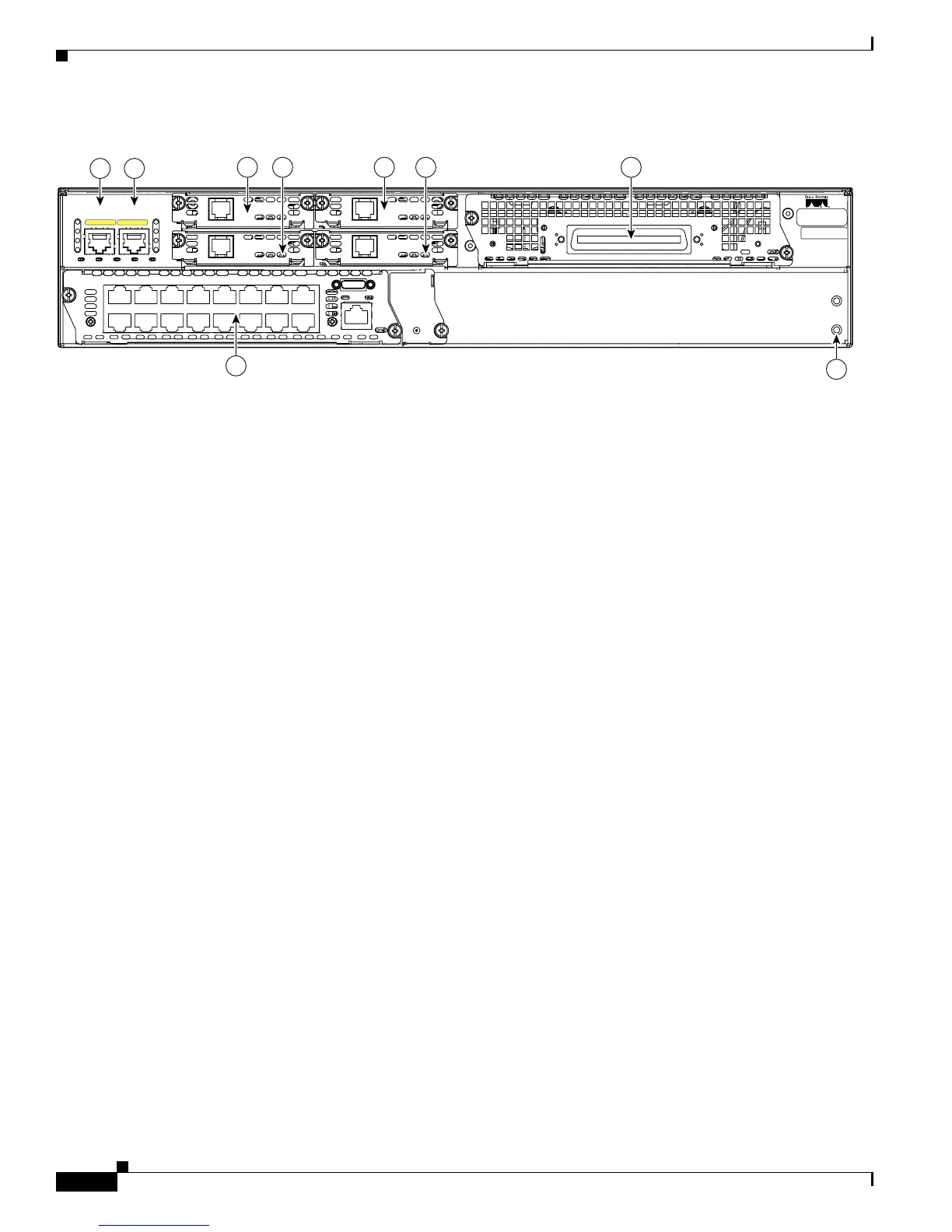

Figure 6 Cisco 2821 Rear Panel Physical Interfaces
The Cisco 2821 router features a console port, an auxiliary port, two Universal Serial Bus (USB) ports,
four high-speed WAN interface card (HWIC) slots, two10/100 Gigabit Ethernet RJ45 ports, a Enhanced
Network Module (ENM) slot, a Voice Network Module (VeNoM) slot, and a Compact Flash (CF) drive.
The Cisco 2821 router supports one single-width network module, four single-width or two
double-width HWICs, two internal advanced integration modules (AIMs)
1
, three internal packet voice
data modules (PVDMs), two fast Ethernet connections, and 16 ports of IP phone power output. The
Figure 5 shows the front panel and Figure 6 shows the rear panel. The front panel contains 4 LEDs that
output status data about the system power, auxiliary power, system activity, and compact flash busy
status. The back panel consists of 13 LEDs: two Ethernet activity LEDs, two duplex LEDs, two speed
LEDs, two link LEDs, three PVDM LEDs, and two AIM LEDs.
The front panel contains the following:
• (1) Power inlet
• (2) Power switch
• (3) Console and auxiliary ports
• (4) USB ports
• (5) CF drive
• (6) LEDs described in table 1.
• (7) Optional RPS input
The back panel contains the following:
• (1) GE 0 port
• (2) GE 1 port
• (3) HWIC 0 slot
• (4) HWIC 1 slot
• (5) HWIC 2 slot
• (6) HWIC 3 slot
• (7) VeNoM slot
• (8) ENM slot
• (9) Ground connector
95572
12
6 4 3 75
9
A= ACT
GE 0/1
PVDM2 PVDM1 PVDM0 AIM1 AIM0
GE 0/0
S= SPEED
A= FDX
A= LINK
A
F
S
L
A
F
S
L
EVM 2 ONLY
1
8
1. However, an AIM module may not be installed in accordance with this security policy. There is a separate
security policy covering the Cisco 2811 and Cisco 2821 routers with AIM module installed.

Cisco 2811 Specifications

General

Full duplex	Yes
Networking standards	-
Ethernet LAN data rates	10, 100 Mbit/s
Supports ISDN connection	No
Safety	UL 60950, CAN/CSA C22.2 No. 60950, IEC 60950, EN 60950-1, AS/NZS 60950
Flash memory	128 MB
Internal memory	256 MB
I/O ports	2 x USB\\r 2 x 10/100 Base-T
Ethernet LAN (RJ-45) ports	2
Storage temperature (T-T)	-40 - 70 °C
Firewall security	Cisco IOS
Security algorithms	128-bit AES, 192-bit AES, 256-bit AES, 3DES, DES
Product color	Blue, Stainless steel
Rack capacity	1U

Weight and Dimensions

Depth	416.6 mm
Width	438.2 mm
Height	44.5 mm
Weight	6400 g
