8 Cisco 4000 Series Rack-Mount and Wall-Mount Installation
Mounting the Chassis in a Standard Rack

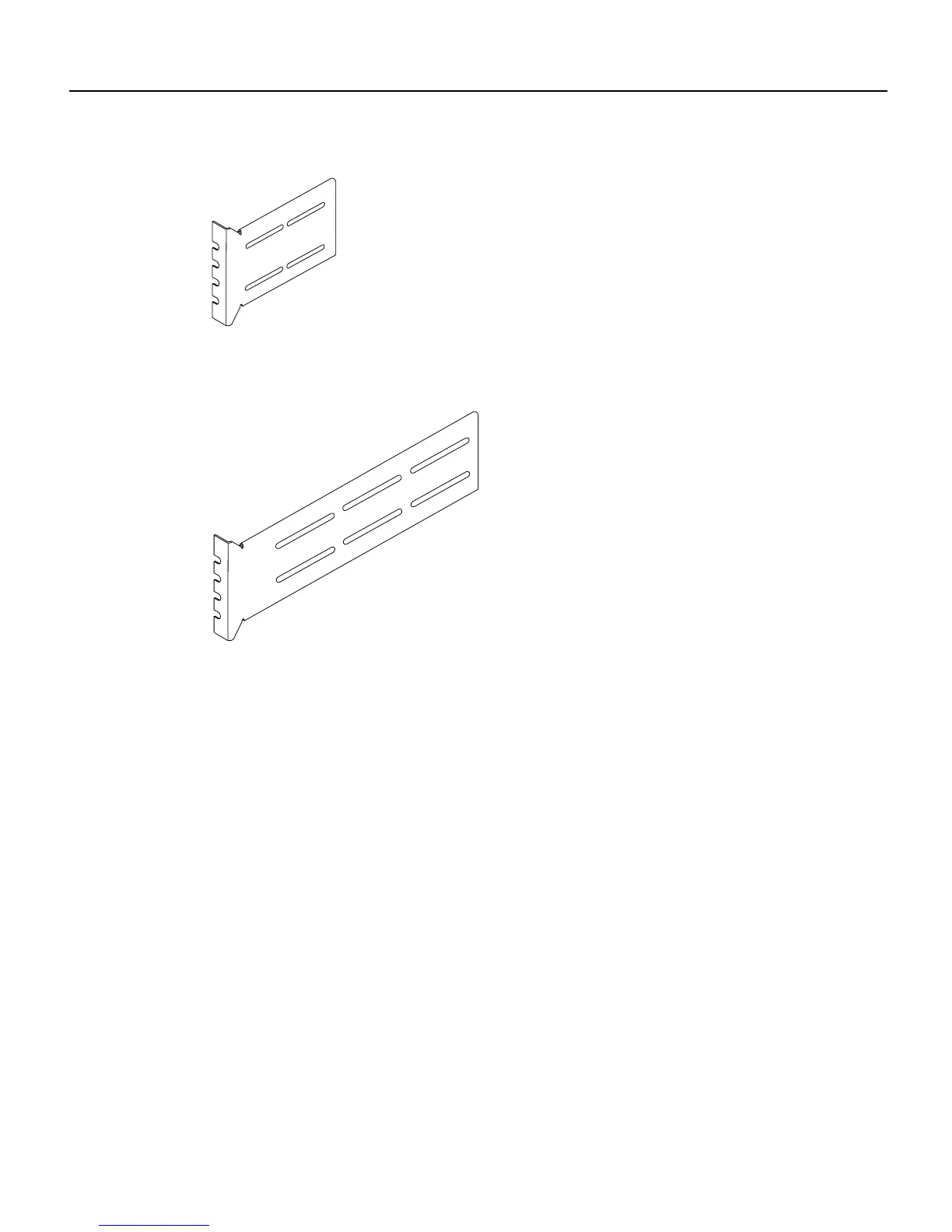

Figure 5 Short Rack-Mount Bracket Extender
Figure 6 Long Rack-Mount Bracket Extender
Installing Standard Rack-Mount Brackets into an Old Version of the Chassis
Take the following steps to install standard rack-mount brackets into an old version of the chassis
shell:
Step 1 Insert one rack-mount bracket through the slot on each side of the front and rear of the
chassis shell, sliding the rack-mount brackets straight into the shell’s inner tabs (see
Figure 7).
Step 2 Fasten the brackets to each side of the chassis shell with the M3 machine screws provided
(see Figure 8).
H1234a
H1233a
