Cisco 4742HDC Installation Reference Guide

TP-00116-01 5

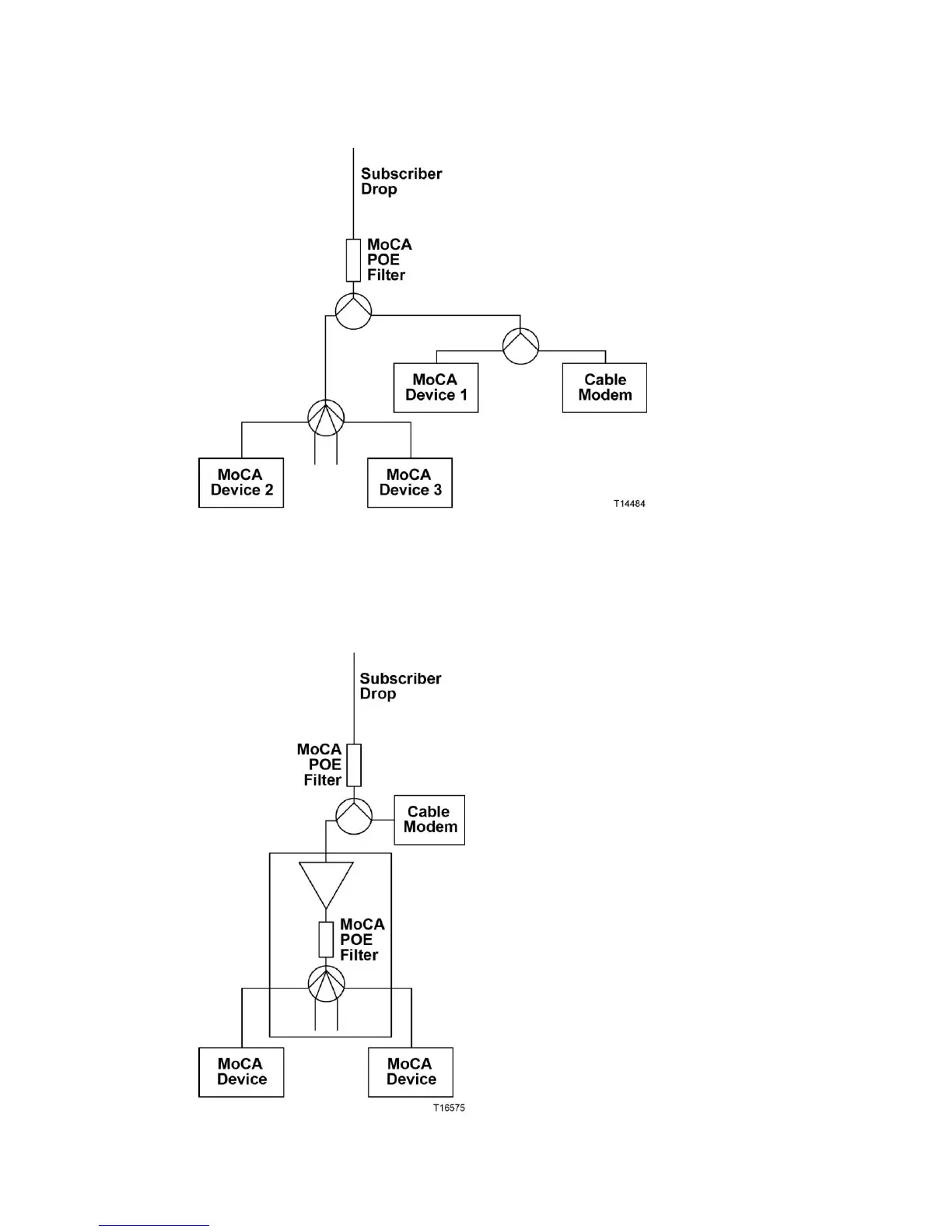

Home Wiring Examples
With Cable Modem (Example B)
With Home Amplifier
Important: Home amplifiers can cause MoCA problems. You should use a MoCA-
compliant amplifier when an amplifier is required. (A MoCA-compliant amplifier
has an internal POE filter, as shown in the diagram.)

Cisco 4742HDC Specifications

General

Model	4742HDC
Category	Set-top boxes
Video Output	HDMI, Component, Composite
Resolution	Up to 1080p
Network	Ethernet
USB	Yes
Power Consumption	15W (typical)
Audio Output	HDMI, Optical
