4 TP-00116-01
Home Wiring Examples
Home Wiring Examples

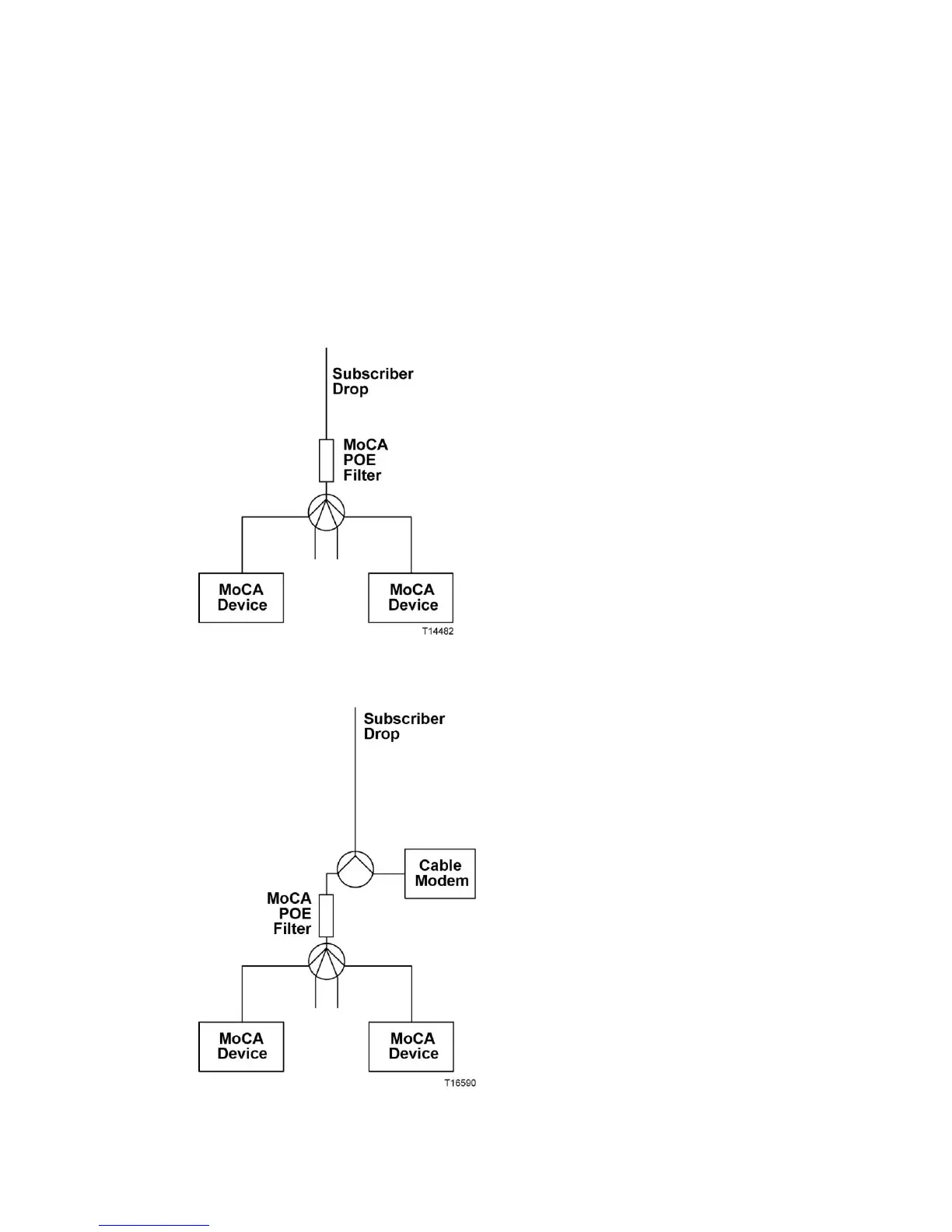

The diagrams in this section show home wiring examples that typically provide
good MoCA performance.
Note: As in each of these diagrams, the POE filter should always be installed before
the first split.
Basic Installation
With Cable Modem (Example A)
