78-5296-02 10/02/98 Hardware Description 1
Cisco 6200 User Guide 1-11
The fiber optic communication channels in the single-mode OC-3c card (NTC OC3-SM) operate
with laser energy, which can be harmful, especially to the eyes. During normal operation this energy
is confined to the cable and presents no danger. To avoid injury when you are connecting or
disconnecting optical channels, observe these precautions:
• Always disconnect the card from the backplane before connecting or disconnecting optical
cables.
• Always keep the protective cap on the optic connector when the connector is not in use.
• Never look into an optical cable or connector.
Reset Switch
The reset switch is recessed behind the faceplate to avoid accidental disturbance. It is not for
customer use.

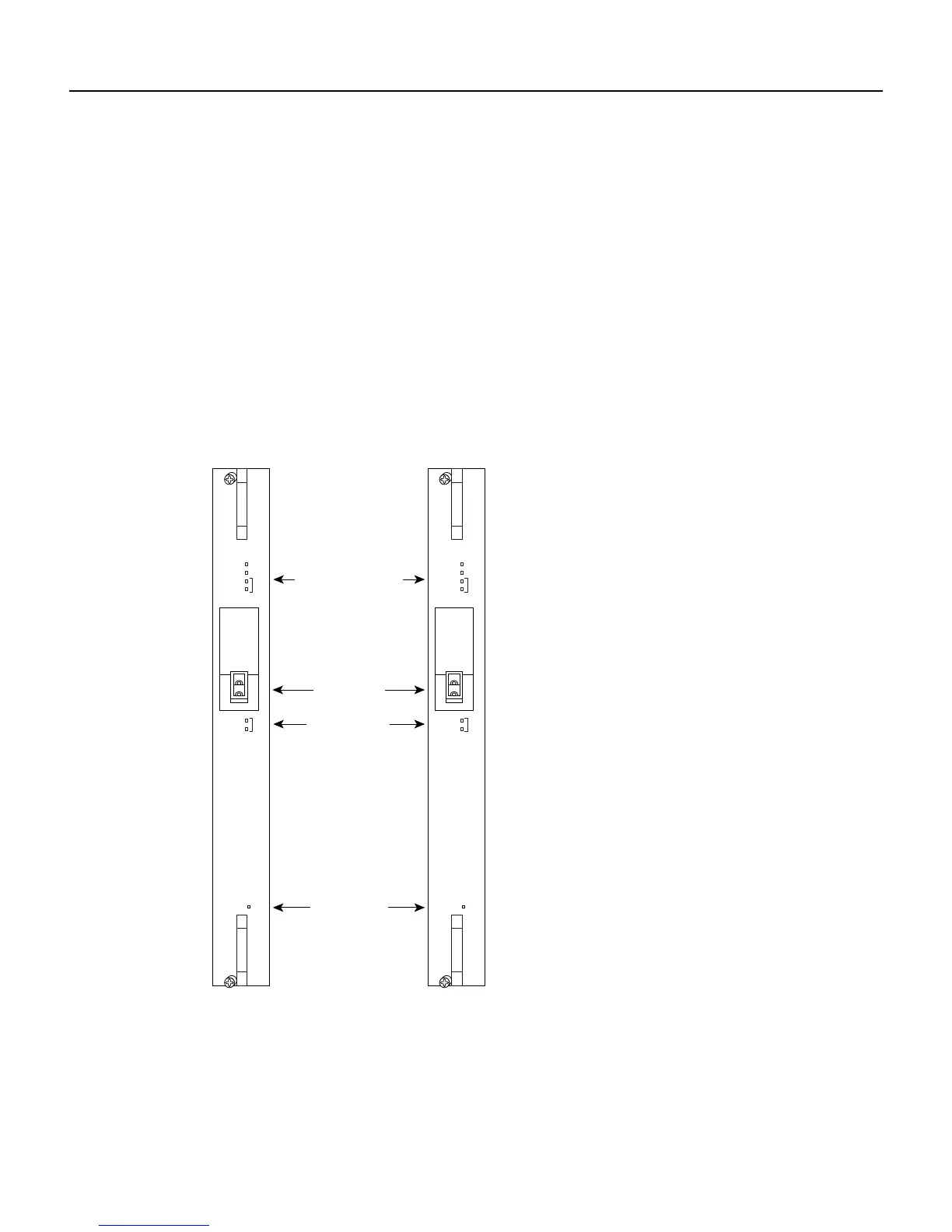

Figure 1-6 NTC OC-3 Faceplates
LED Indicators
Table 1-3 describes the LEDs on the faceplate of the OC-3 NTC.
POWER
A
C
T
I
V
E
NTC
OC3-SM
READY
PRIME
SEC
A
TD
RD
POWER
A
C
T
I
V
E
NTC
OC3-MM
READY
PRIME
SEC
A
TD
RD
12689
Card status LEDs
Transmit and
receive LEDs
Reset switch
OC-3c port
